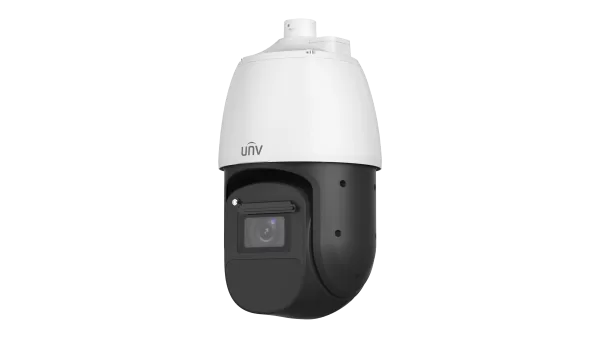

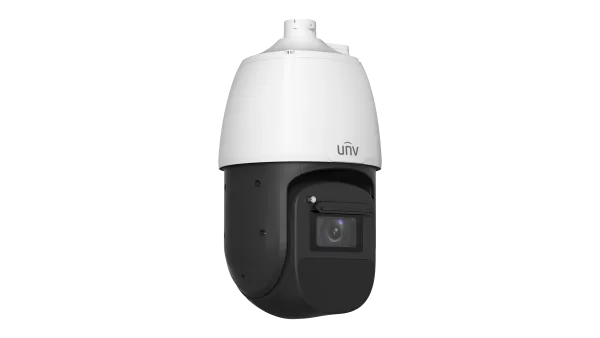

| Model |
IPC6824ER-X42-W-VH2 |
| Camera |
| Sensor |
1/1.8″ CMOS |
| Min. Illumination |
Color: 0.0003 Lux (F1.2, AGC ON), 0 Lux with IR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, 1 to 1/100000 s |
| WDR |
150 dB |
| S/N |
> 56 dB |
| Lens |
| Focal Length |
6 to 252 mm |
| Optical Zoom |
42X |
| Digital Zoom |
16X |
| Iris |
F1.2 to F4.6 |
| Field of View (H) |
59.47° (W) to 2.20° (T) |
| Field of View (V) |
35.62° (W) to 1.24° (T) |
| Field of View (D) |
73.14° (W) to 2.59° (T) |
| DORI |
| DORI Distance (Detect) |
93.1 m to 4310.3 m (305.5 ft. to 14143.7 ft) |
| DORI Distance (Observe) |
37.2 m to 1564.1 m (122.1 ft. to 6116.1 ft) |
| DORI Distance (Recognize) |
18.6 m to 782.1 m (61.0 ft. to 2894.1 ft) |
| DORI Distance (Identify) |
9.3 m to 391.0 m (30.5 ft. to 1610.6 ft) |
| Video |
| Video Compression |
H.265, H.264, MJPEG |
| Frame Rate |
Main Stream: 4 MP (2688 × 1520), max. 60 fps
Sub Stream: 1080P (1920 × 1080), max. 60 fps
Third Stream: D1 (720 × 576), max. 60 fps |
| Video Bit Rate |
128 Kbps to 16 Mbps |
| U-code |
Support |
| ROI |
Up to 8 areas |
| Video Stream |
Triple streams |
| Privacy Mask |
24 areas, up to 8 areas per scene |
| OSD |
Up to 10 OSDs |
| Events |
| Basic Detection |
Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind |
| General Function |
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input |
| Audio |
| Audio Bitrate |
128 Kbps |
| Two-way Audio |
Support |
| Suppression |
Support |
| Audio Compression |
G.711U, G.711A |
| Sampling Rate |
8 kHz, 16 kHz |
| Storage |
| Edge Storage |
MicroSD, up to 512 GB |
| Network Storage |
ANR, NAS (NFS) |
| Network |
| User/Host |
Up to 32 users. 3 user levels: administrator, common user and operator |
| Protocols |
SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T, Profile M), SDK, API |
| Security |
Strong Password, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, TLS 1.3, WSSE and Digest Authentication for ONVIF |
| Client |
EZStation, UNV-Link, UNV-Link Pro |
| Web Browser |
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Intelligent |
| Auto Tracking |
Support, target filtering: human, non-motor vehicle and vehicle |
| Multi-target Detection |
Support |
| People Counting |
Support people flow counting and crowd density monitoring |
| Smart Intrusion Prevention |
Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| PTZ |
| Route Patrol |
16 patrols, up to 32 actions for each patrol |
| Recorded Patrol |
16 patrols, up to 128 actions for each patrol |
| Preset Image Freeze |
Support |
| Preset Patrol |
16 patrols, up to 64 presets for each patrol |
| Patrol Stay Time |
15 s to 1800 s |
| Home Position |
Support |
| Tilt Range |
-15° to 90° (Upward tilt is negative) |
| Pan Speed |
0.1°/s to 300°/s |
| Pan Range |
0° to 360° (endless) |
| Tilt Speed |
0.1°/s to 180°/s |
| Number of Presets |
1024 |
| Image |
| BLC |
Support |
| White Balance |
Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance |
| Digital Noise Reduction |
2D/3D DNR |
| Flip |
Normal, Flip horizontal, Flip vertical, 180° |
| HLC |
Support |
| Defog |
Digital defog, Optical defog |
| Image Stabilization |
EIS (Gyroscope) |
| Interface |
| Audio I/O |
1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O |
7/2 |
| Network |
1 × RJ45 10 M/100 M Base-TX Ethernet |
| Serial Port |
1 × RS485 |
| Video Output |
1 BNC |
| Illuminator |
| Wavelength |
850 nm |
| IR On/Off Control |
Auto/Manual |
| Illumination Distance (IR) |
500 m (1640.4 ft) |
| Certification |
| Safety |
CE LVD (EN IEC 62368-1+ A11) |
| EMC |
CE EMC (EN 55032+ A11; EN IEC 61000-3-2; EN 61000-3-3+ A; EN 55035+ A11) |
| Environment |
CE ROHS (2011/65/EU; (EU)2015/863) |
| Protection |
IP67 (IEC 60529+ AMD1+ AMD2)
IK10 (IEC 62262, Anti-Vandalism Except for the Front Window) |
| General |
| Power |
DC 24 V±25%, AC 24 V±25%, PoE (IEEE802.3bt) |
| Power Consumption |
≤ 65.5W |
| Power Interface |
Wires with cold-pressed terminal |
| Dimensions |
Ø227 mm × 414 mm (Ø8.94″ × 16.30″) (Ø × H) |
| Weight |
6.9 kg |
| Storage Environment |
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection |
6 KV |
| Reset Button |
Support |
| Working Environment |
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Heater |
Support |
| Compliance |
| NDAA Compliant |
Support |
