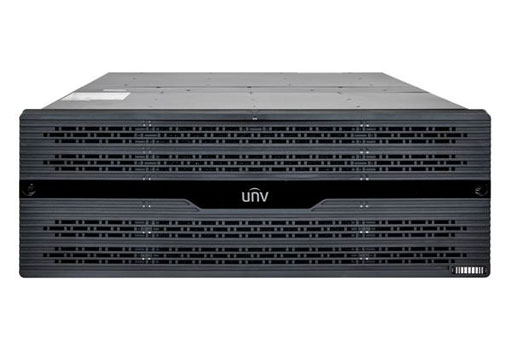

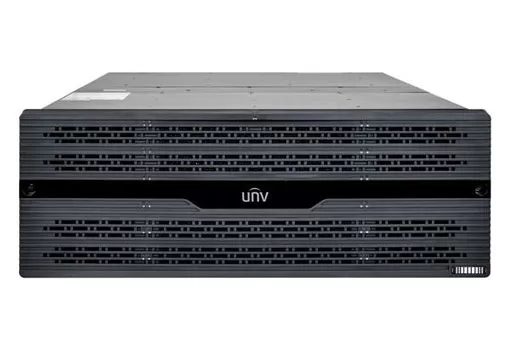

DE1848-V2 Series

$0.00

Disk Enclosure

• 24/48 SATA HDDs,up to 14TB for each HDD
• 4×48/2×48 Gbps Mini SAS HD ports

Category:

Have a question about this product? Ask Our Expert

  • NDAA

    Compliant

  • Protected By Our

    3 years warranty

Description

High-Quality Hardware Design

* high performance

12Gbps SAS-3 technology provides superior performance experience

* High density

The innovative enclosure with 801mm depth and4U height that holds up to 48 disks, is space-saving .

* Redundant power supplies

The hot-swappable power supply is designed in redundancy and load balancing mode. Automatic power switching in case of failure and online replacement of failed power supply are supported.

* Power protection

Disk powered on sequentially during system startup, protection from impulse current.

* Multistage fan speed and energy saving

Fans with multistage speed are configured in the hot-swappable frame in redundancy mode. System power consumption can be balanced intelligently with heat dissipation calculation to ensure low power consumption and stable operation of the system.



Specifications

Item DE1848-V2 DE1824-V2
Cooperate with VX1848-V2 VX1824-V2
Management Interface 2 Serial port
Back-end Expansion Interface 2-port 4*12 Gbps Mini SAS HD 2-port 4*12 Gbps Mini SAS HD(Primary )
2-port 2*12 Gbps Mini SAS HD(Backup)
HDD 48 SATA Interfaces 24 SATA Interfaces
Disk Capacity 1 TB, 2 TB, 3 TB, 4 TB , 5 TB, 6 TB,8TB,10TB, 12TB,14TB
Dimension
(W x D x H)
482mm X801mm X 178mm
Note:for standard cabinet with 1000mm depth or above
482mm X589mm X 175mm
Power Consumption 410W (fully loaded) 250W (fully loaded)
Power Supply 100V – 127V/200V – 240V AC;60Hz/50Hz
Weight Fully loaded:60< kg Fully loaded:< 38kg
Authentication certificate CE, FCC, UL
Operating temperature 5°C ~ 40°C / 41°F ~ 104°F
Recommended temperature 10 °C~ 35 °C / 50°F ~ 95°F
Humidity 20%~80% RH (non-condensing)
