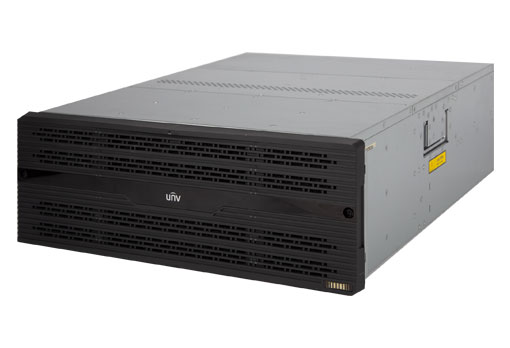

DE3160-V2

$0.00

Disk Enclosure

• Dual/Single Controller
• 24/48/60 SATA HDDs,up to 14TB for each HDD
• 8×48/4×48/2×48Gbps Mini SAS HD ports

Category:

Have a question about this product? Ask Our Expert

  • NDAA

    Compliant

  • Protected By Our

    3 years warranty

Description

High-Quality Hardware Design

* high performance

12Gbps SAS-3 technology provides superior performance experience

* High density

The innovative enclosure with 981mm depth and4U height that holds up to 60disks, is space-saving and applicable to the standard rack-mounted scenarios.

* Redundant power supplies

The hot-swappable power supply is designed in redundancy and load balancing mode. Automatic power switching in case of failure and online replacement of failed power supply are supported.

* Power protection

Disk powered on sequentially during system startup, protection from impulse current.

* Multistage fan speed and energy saving

Fans with multistage speed are configured in the hot-swappable frame in redundancy mode. System power consumption can be balanced intelligently with heat dissipation calculation to ensure low power consumption and stable operation of the system.



Specifications

Item DE3124-V2 DE3148-V2 DE3160-V2 DE3160-V2@S
Cooperate with VX3024-V2 VX3048-V2 VX3060-V2 VX3060-V2@S
Management Interface 2Serial port
Back-end Expansion Interface 4-port 4*12Gbps Mini SAS HD(Primary)
4-port 2*12Gbps Mini SAS HD(Backup)
4-port 4*12Gbps Mini SAS HD 4-port 4*12Gbps Mini SAS HD 2-port 4*12Gbps Mini SAS HD
HDD 24SATA/SAS/NL SAS Interfaces 48SATA/SAS/NL SAS Interfaces 60SATA/SAS/NL SAS Interfaces 60SATA/SAS/NL SAS Interfaces
Disk Capacity 1 TB, 2 TB, 3 TB, 4 TB , 5 TB, 6 TB,8TB,10TB, 12TB,14TB
Dimension
(W x D x H)
482.0mm × 589.0mm × 175.0 mm 482.0mm × 801.0mm × 178.0 mm
Note:for cabinet with 1000mm depth or above
480.6mm× 981.0mm × 178.0 mm
Note:for cabinet with 1200mm depth or above
Power Consumption 270W (fully loaded) 450W (fully loaded) 700W (fully loaded) 700W (fully loaded)
Power Supply 100V – 127V/200V – 240V AC;60Hz/50Hz
Weight Fully loaded:< 40kg Fully loaded:< 61 kg Fully loaded:< 92 kg Fully loaded:<90 kg
Authentication certificate CE, FCC, UL
Operating temperature 5°C ~ 40°C / 41°F ~ 104°F
Recommended temperature 10 °C~ 35 °C / 50°F ~ 95°F
Humidity 20%~80% RH (non-condensing)
