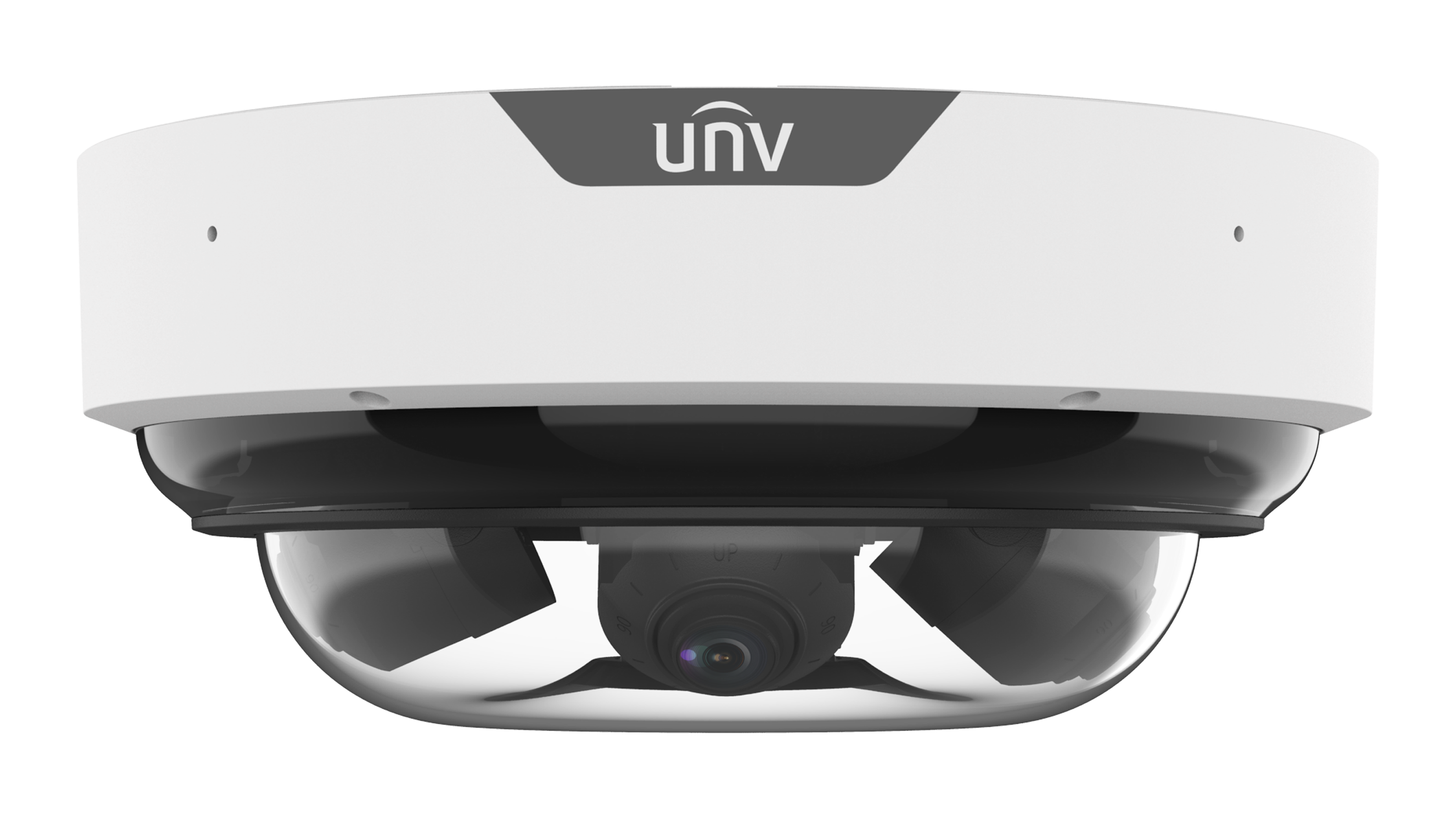

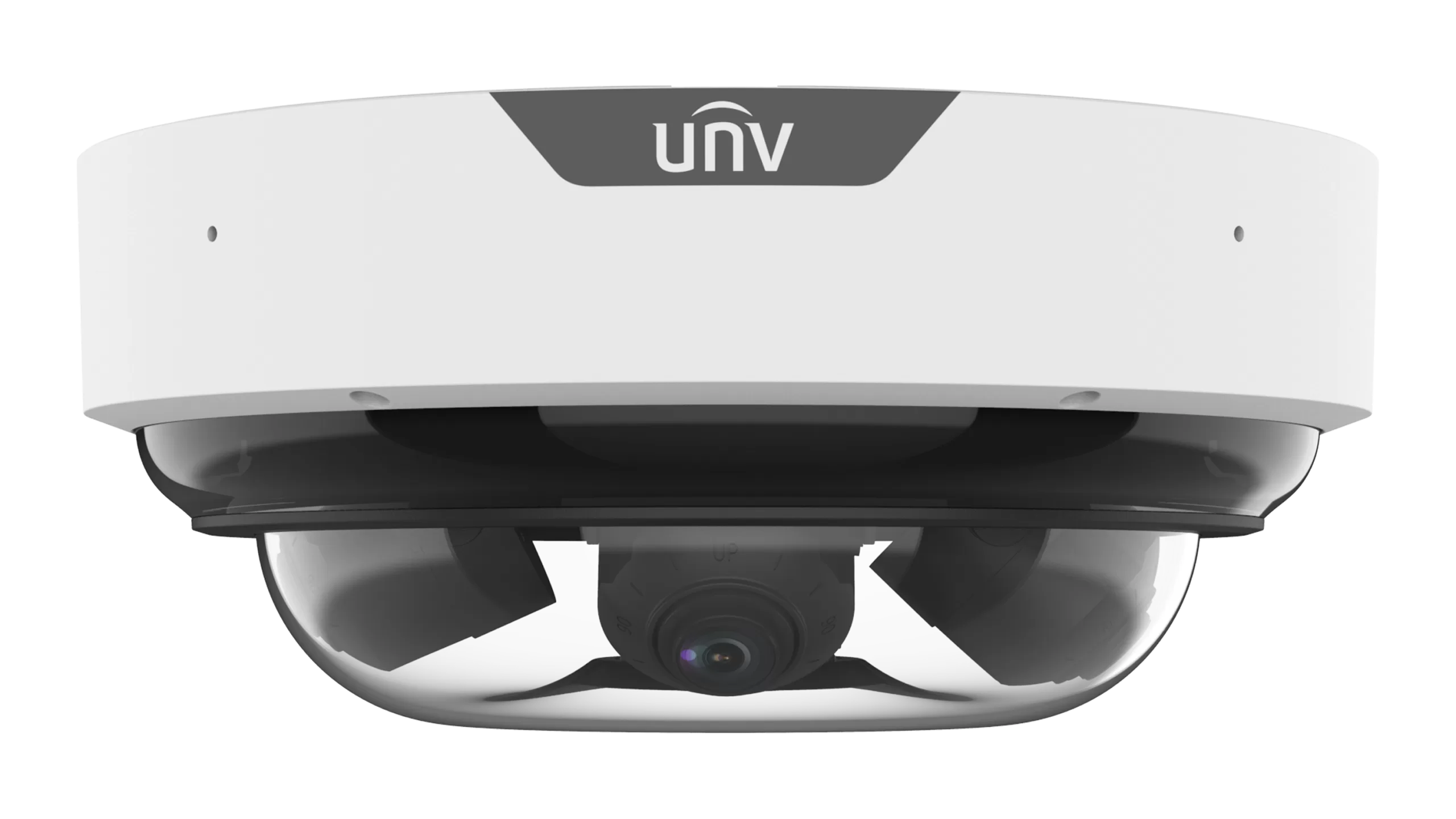

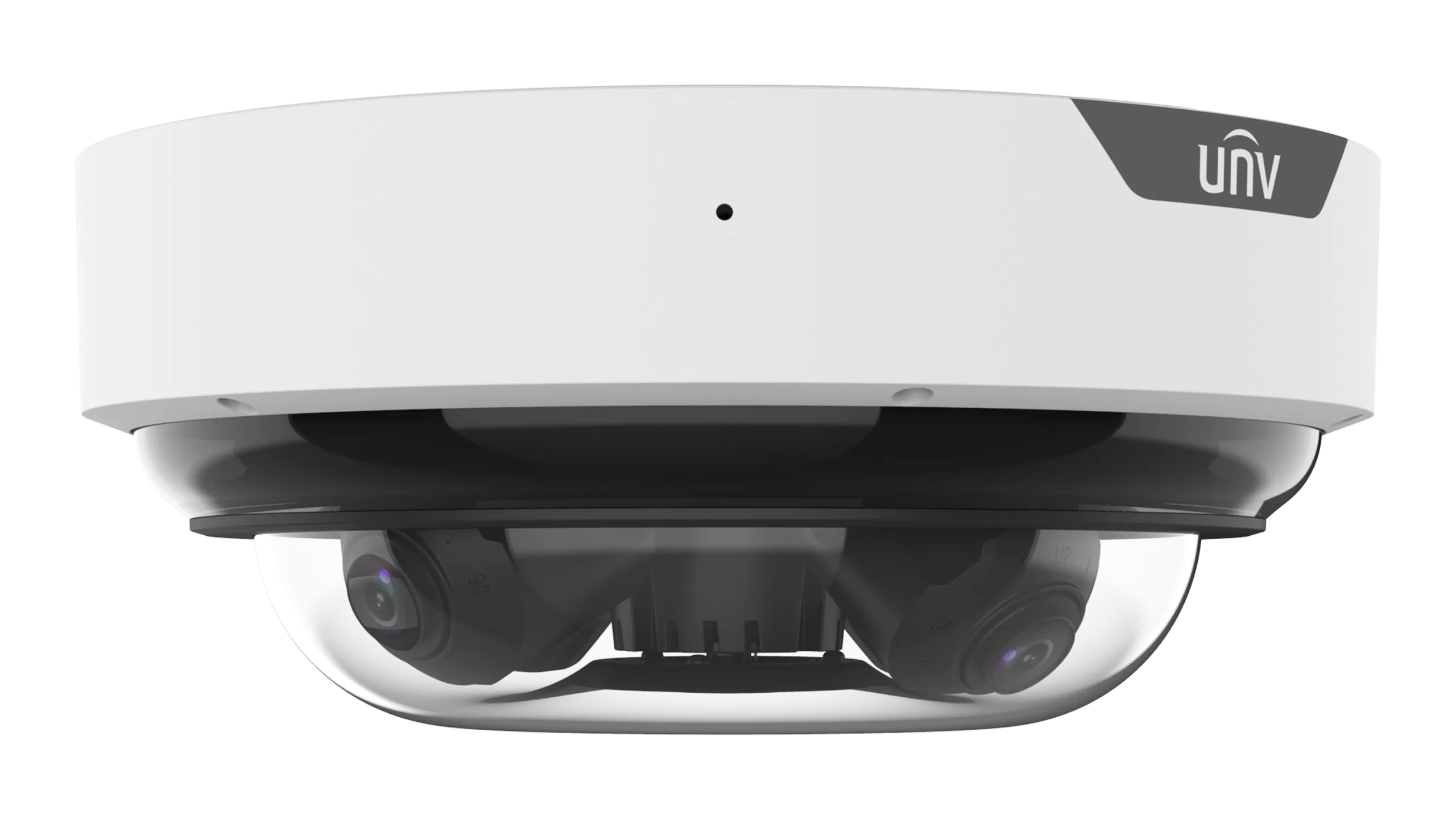

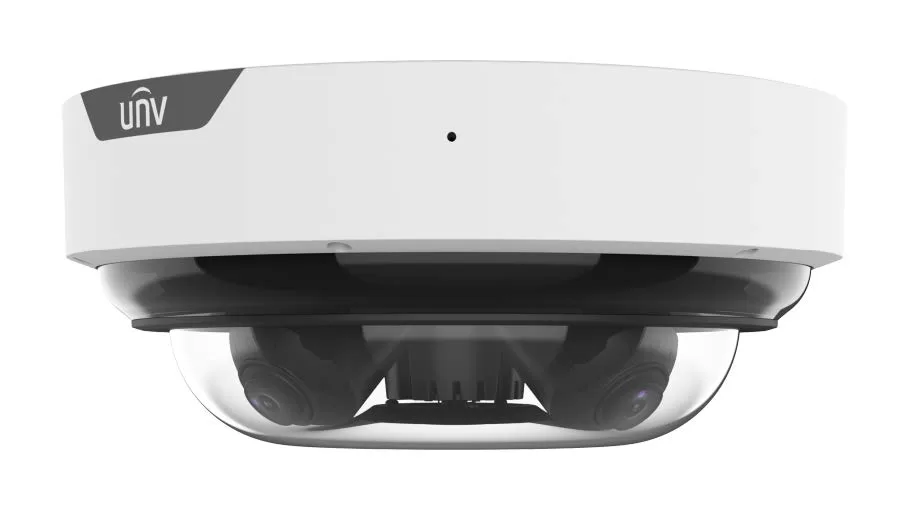

IPC8645EA-ADZKM-I1 |
| Camera |
| Sensor |
1/2.7″ CMOS |
| Min. Illumination |
Colour: 0.002 lux (F1.2, AGC ON)
0 lux with IR on |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| WDR |
130 dB |
| Adjustment Angle |
Pan: 0° ~ 360°, Tilt: 0° ~ 65°, Rotate: 0° ~ 355° |
| S/N |
>56 dB |
| Lens |
| Focal Length |
2.7 to 13.5 mm |
| Optical Zoom |
5X |
| Iris |
F1.2 * 4 |
| Field of View (H) |
(W)110.3°~(T)31° |
| Field of View (V) |
(W)57.1°~(T)17.5° |
| Field of View (D) |
(W)130.2°-(T)67.4° |
| Iris Type |
Fixed |
| DORI |
| DORI Distance (Detect) |
70.9m~247.5m(232.5ft~812.0ft) |
| DORI Distance (Observe) |
28.4m~99.0m(93.0ft~324.8ft) |
| DORI Distance (Recognize) |
14.2m~49.5m(46.5ft~162.4ft) |
| DORI Distance (Identify) |
7.1m~24.8m(23.3ft~81.2ft) |
| Illuminator |
| Illumination Distance (IR) |
50 m (164.0 ft) |
| IR On/Off Control |
Auto/Manual |
| Intelligent |
| Exception Detection |
Scene Change, Defocus Detection, Object Removed, Object Left Behind |
| Smart Intrusion Prevention |
Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting |
Support People Flow Counting and Crowd Density Monitoring |
| Events |
| Motion Detection |
Support |
| Tampering Detection |
Support |
| Audio Detection |
Support |
| UMD (Ultra Motion Detection) |
Support |
| Image |
| Flip |
Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| Defog |
Digital Defog |
| Network |
| Protocols |
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T, Profile M),
API, SDK |
| User/Host |
Up to 32 users. 3 user levels: administrator, common user and operator |
| Security |
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Web Browser |
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Storage |
| Edge Storage |
Micro SD, up to 512 GB |
| Network Storage |
ANR, NAS (NFS) |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile |
Baseline profile, Main profile, High profile |
| Frame Rate-Main Stream |
Channel * 4
5MP (2880*1620), Max 30fps;
4MP (2688*1520), Max 30fps;
4MP (2560*1440), Max 30fps;
3MP (2304*1296), Max 30fps;
1080P (1920*1080), Max 30fps;
720P (1280*720), Max 30fps;
D1 (720*576), Max 30fps;
640*360, Max 30fps;
2CIF(704*288), Max 30fps;
CIF(352*288), Max 30fps |
| Frame Rate-Sub Stream |
Channel * 4
1080P (1920*1080), Max 30fps;
720P (1280*720), Max 30fps;
D1 (720*576), Max 30fps;
640*360, Max 30fps;
2CIF(704*288), Max 30fps;
CIF(352*288), Max 30fps |
| Frame Rate-Third Stream |
Channel * 4
D1 (720*576), Max 30fps;
640*360,Max 30fps;
2CIF(704*288), Max 30fps;
CIF(352*288), Max 30fps |
| Frame Rate |
Channel * 4
Main Stream:
4MP (2880*1620), Max 30fps;
4MP (2688*1520), Max 30fps;
4MP (2560*1440), Max 30fps;
3MP (2304*1296), Max 30fps;
1080P (1920*1080), Max 30fps;
720P (1280*720), Max 30fps;
D1 (720*576), Max 30fps;
640*360, Max 30fps;
2CIF(704*288), Max 30fps;
CIF(352*288), Max 30fps;
Sub Stream:
1080P (1920*1080), Max 30fps;
720P (1280*720), Max 30fps;
D1 (720*576), Max 30fps;
640*360, Max 30fps;
2CIF(704*288), Max 30fps;
CIF(352*288), Max 30fps;
Third Stream:
D1 (720*576), Max 30fps;
640*360,Max 30fps;
2CIF(704*288), Max 30fps;
CIF(352*288), Max 30fps |
| Frame Rate Recommendation |
Channel * 4
2880*1620@30fps+1080P@30fps+D1@30fps |
| Video Bit Rate |
128 Kbps ~ 16 Mbps * 4Channel |
| U-code |
Support |
| ROI |
Support |
| Video Stream |
Triple streams |
| OSD |
Up to 10 OSDs * 4 Channel |
| Privacy Mask |
Up to 8 * 4Channel |
| Audio |
| Audio Compression |
G.711U, G.711A |
| Two-way Audio |
Support |
| Sampling Rate |
8 kHz |
| Interface |
| Audio I/O |
1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O |
3/2 |
| Built-in Mic |
Support |
| Network |
1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet |
| Other |
| Corridor Mode |
Support |
| Certification |
| Protection |
IP67 (IEC 60529), IK10 (IEC 62262) |
| General |
| Power |
DC 24V±25%, AC 24V±25%, PoE (IEEE802.3bt) |
| Built-in DC12V Output |
Support |
| Power Consumption |
Max 31W |
| Power Interface |
Wires with cold-pressed terminal |
| Dimensions |
Φ 318 x 136.6 mm (Φ 12.52″ x 5.38″)(Φ x H) |
| Weight |
4.77Kg（10.52lb） |
| Working Environment |
-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: 5%~95% RH |
| Storage Environment |
-40 °C ~ 70 °C (-40 °F ~ 158 °F), Humidity: 5%~95% RH |
| Surge Protection |
6 KV |
