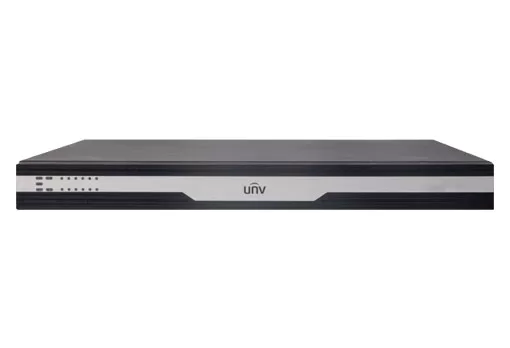

ADU8712-E

$0.00

12-Channel High Definition Video Decoder

Out of stock

Have a question about this product? Ask Our Expert

  • NDAA

    Compliant

  • Protected By Our

    3 years warranty

Description

Key Features:

– Provide 12 HDMI output interfaces
– Provide 2 DVI-D and 2 HDMI input interfaces
– Up to 3840×2160@30Hz via HDMI output interfaces
– Up to 3840×2160@30Hz via HDMI input interfaces
– Single port decoding capability up to 16*1080P@30
– Up to decoding at 12MP resolution
– Support window opening, roaming and picture in picture
– Support multicast
– Support for virtual LED
– Support Fine Pixel LED display
– Decode video stream in H.265/ H.264/MPEG4
– Support up to 6/9/12 video-wall display units
– Support local upgrade and remote upgrade

Specifications

Model ADU8706-E ADU8709-E ADU8712-E
Video Output
Output channel 6 9 12
HDMI output 4K: 3840×2160@30Hz, WUXGA:1920×1200@60Hz, 1080P:1920×1080@60Hz, UXGA:1600×1200@60Hz, WXGA+:1440×900@60Hz, SXGA:1280×1024@60Hz, 720P:1280×720@60Hz, XGA:1024×768@60Hz
Video input
Input channel 2*DVI,2*HDMI
DVI input 1080P:1920×1080@60Hz, 1080P:1920×1080@50Hz, UXGA:1600×1200@60Hz, WXGA+:1440×900@60Hz, SXGA:1280×1024@60Hz, 720P:1280×720@60Hz, 720P:1280×720@50Hz, XGA:1024×768@60Hz
HDMI input 4K: 3840×2160@30Hz, 1080P:1920×1080@60Hz, 1080P:1920×1080@50Hz, UXGA:1600×1200@60Hz, WXGA+:1440×900@60Hz, SXGA:1280×1024@60Hz, 720P:1280×720@60Hz, 720P:1280×720@50Hz, XGA:1024×768@60Hz
Video Decoding
Video Stream Format H.265, H.264, MPEG4
Decoding Capability 8*12MP@20/ 8*4K@30/ 32*1080P@30/ 72*720P@30 12*12MP@20/ 12*4K@30/ 48*1080P@30/ 108*720P@30 16*12MP@20/ 16*4K@30/ 64*1080P@30/ 144*720P@30
Display split 1/2/3/4/5/6/7/8/9/10/13/16
External Interface
Alarm Input 4 (Reservation)
Alarm Output 4 (Reservation)
Audio Input 1-ch(Reservation)
Audio Output 2-ch
USB Interface 2*USB3.0
Serial Interface 1*RS-232, 1*RS485
Network Interface 2*RJ-45 , 10M/100M/1000M adaptive Ethernet Interfaces
General
Dimensions 440mm(W)×340mm(D)×48mm(H)
Weight 4kg
Working Temperature -10~55°C
Working Humidity 10% ~ 90%(No-condensing)
Power Supply 100V ~ 240V AC; 50Hz/60Hz
Consumption 60W
