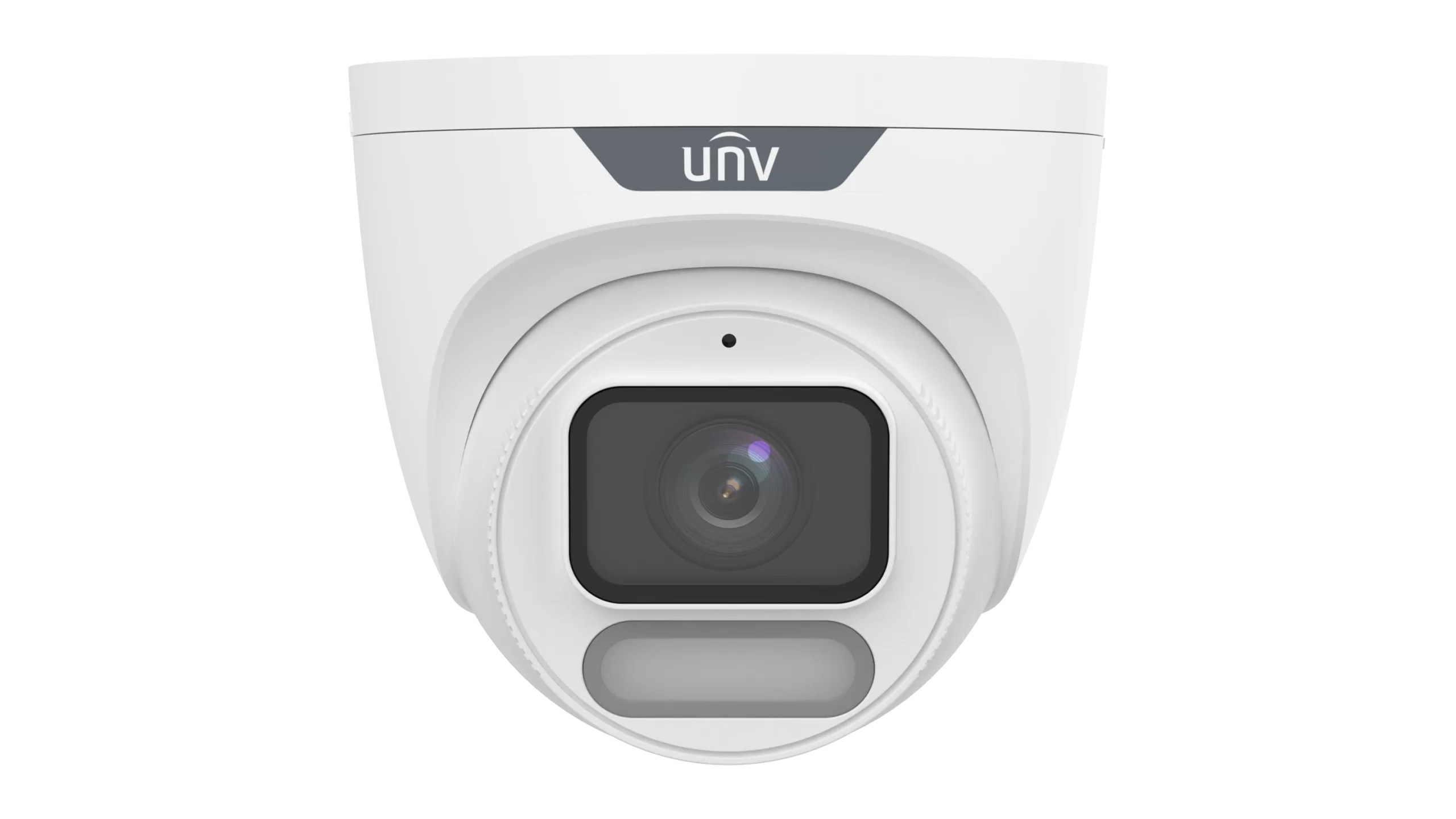

| Camera |
Description |
| Resolution |
4MP |
| Sensor |
1/1.8″CMOS |
| Min. Illumination |
Colour: 0.0003 lux (F1.0, AGC ON) |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle |
Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360° |
| S/N |
>52dB |
| WDR |
120dB |
| Lens |
Description |
| Lens type |
IPC3624SR-ADF28KM-WP:2.8mm
IPC3624SR-ADF40KM-WP:4.0mm |
| Iris Type |
Fixed |
| Iris |
F1.0 |
| Field of View (H) |
IPC3624SR-ADF28KM-WP:110.4°
IPC3624SR-ADF40KM-WP:89.4° |
| Field of View (V) |
IPC3624SR-ADF28KM-WP:60.5°
IPC3624SR-ADF40KM-WP:48.2° |
| Field of View (D) |
IPC3624SR-ADF28KM-WP:115.2°
IPC3624SR-ADF40KM-WP:94.7° |
| DORI |
Description |
| DORI Distance(Lens) |
IPC3624SR-ADF28KM-WP:2.8mm
IPC3624SR-ADF40KM-WP:4.0mm |
| DORI Distance(Detect) |
IPC3624SR-ADF28KM-WP:43.4m(142.5.7ft)
IPC3624SR-ADF40KM-WP:62.1(203.6ft) |
| DORI Distance(Observe) |
IPC3624SR-ADF28KM-WP:17.4(57.0ft)
IPC3624SR-ADF40KM-WP:24.8(81.5ft) |
| DORI Distance(Recognize) |
IPC3624SR-ADF28KM-WP:8.7(28.5ft)
IPC3624SR-ADF40KM-WP:12.4(40.7ft) |
| DORI Distance(Identify) |
IPC3624SR-ADF28KM-WP:4.3(14.3ft)
IPC3624SR-ADF40KM-WP:6.2(20.4ft) |
| Illuminator |
Description |
| Illumination Distance(Warm Light) |
30m |
| Light On/Off Control |
Auto/Manual |
| Video |
Description |
| Video Compression |
Ultra 265; H.265; H.264; MJPEG |
| H.264 code profile |
Baseline profile, Main profile, High profile |
| Frame Rate |
Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; |
| Video Bit Rate |
128 Kbps~6144Kbps |
| U-code |
Support |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
Up to 4 areas |
| ROI |
Up to 8 areas |
| Video stream |
Dual streams |
| Image |
Description |
| White Balance |
Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2 |
| Digital noise reduction |
2D/3D DNR |
| Smart Illumination |
Support |
| Flip |
Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti‑clockwise |
| Dewarping |
N/A |
| HLC |
Support |
| BLC |
Support |
| Defog |
Digital Defog |
| Events |
Description |
| Basic Detection |
Motion detection; Ultra motion detection; Tampering alarm; Audio detection; Cross line (based on human body detection); Intrusion (based on human body detection) |
| General Function |
Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication |
| Audio |
Description |
| Audio Compression |
G.711U; G.711A |
| Audio Bitrate |
64 Kbps |
| Two-way Audio |
N/A |
| Suppression |
Support |
| Sampling Rate |
8KHZ |
| Storage |
Description |
| Edge Storage |
Micro SD，up to 256 GB |
| Network Storage |
ANR; NAS(NFS) |
| Network |
Description |
| Protocols |
IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS; RTMP; SSL/TLS |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T); API; SDK |
| User/Host |
Up to 32 users, 2 user levels: administrator and common user |
| Security |
Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF |
| Client |
UNV‑Link; UNV‑Link Pro; EZStation |
| Web Browser |
Plug‑in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug‑in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
| Interface |
Description |
| Audio I/O |
N/A |
| Alarm I/O |
N/A |
| Serial Port |
N/A |
| Built-in Mic |
Support |
| Built-in Speaker |
N/A |
| WIFI |
N/A |
| Network |
1 * RJ45 10M/100M Base‑TX Ethernet |
| Video Output |
N/A |
| Certification |
Description |
| EMC |
CE‑EMC (EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035)
FCC (FCC 47 CFR part15 B) |
| Safety |
CE LVD (EN 62368‑1)
UL/CUL (UL 62368‑1, CAN/CSA C22.2 No. 62368‑1) |
| Environment |
CE‑RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
| Protection |
IP67 (IEC 60529) |
| General |
Description |
| Power |
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 2.8W |
| Power Interface |
Ø 5.5mm coaxial power plug |
| Dimensions |
Φ118x106mm (Ø4.6” x 4.2”) |
| Weight |
0.48kg(1.06lb) |
| Material |
Metal |
| Working Environment |
‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing) |
| Storage Environment |
‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing) |
| Surge protection |
4KV |
| Reset button |
Support |
| Web Client Language |
13 Languages
English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian |
