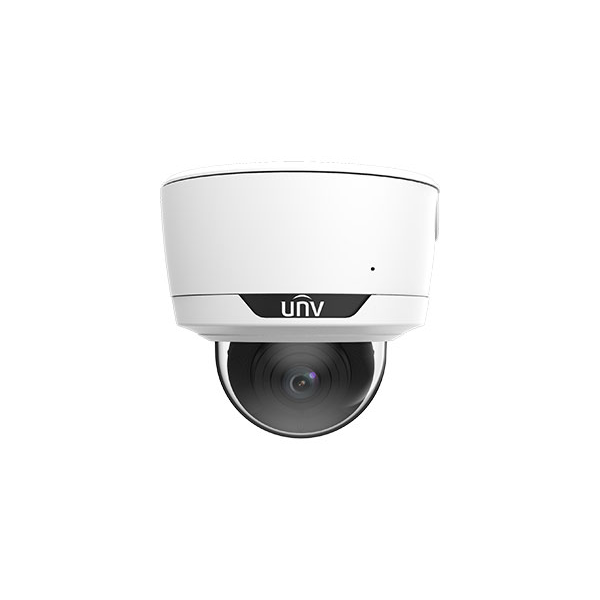

IPC3738SE-ADZK-I0 |
| Camera |
| Sensor |
1/1.8″ CMOS |
| Min. Illumination |
Color: 0.0008 Lux (F1.2, AGC ON), 0 Lux with IR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, 1 to 1/100000 s |
| WDR |
120 dB |
| S/N |
>56 dB |
| Lens |
| Focal Length |
2.8 to 12 mm |
| Digital Zoom |
16X |
| Optical Zoom |
5X |
| Iris |
F1.2 |
| Field of View (H) |
101.1° to 48.0° |
| Field of View (V) |
57.2° to 23.9° |
| Field of View (D) |
124.3° to 59.0° |
| Iris Type |
Fixed |
| DORI |
| DORI Distance (Lens) |
2.8 to 12 mm |
| DORI Distance (Detect) |
98.6 m to 241.0 m (323.3 ft. to 790.6 ft) |
| DORI Distance (Observe) |
39.4 m to 96.4 m (129.3 ft. to 316.2 ft) |
| DORI Distance (Recognize) |
19.7 m to 48.2 m (64.7 ft. to 158.1 ft) |
| DORI Distance (Identify) |
9.9 m to 24.1 m (32.3 ft. to 79.1 ft) |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate |
128 Kbps to 16 Mbps |
| U-code |
Support |
| ROI |
Support |
| Video Stream |
Triple streams |
| Privacy Mask |
Up to 4 areas |
| OSD |
Up to 10 OSDs |
| Frame Rate-Main Stream |
8 MP (3840 × 2160), max. 30 fps |
| Frame Rate-Sub Stream |
720P (1280 × 720), max. 30 fps |
| Frame Rate-Third Stream |
D1 (720 × 576), max. 30 fps |
| Intelligent |
| Exception Detection |
Object removed, Object Left Behind, Scene change, Defocus detection |
| Smart Intrusion Prevention |
Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting |
Support people flow counting and crowd density monitoring |
| Traffic Monitoring |
Support capturing car license picture when the car passes tripwire, Up to 4 lanes can be set, Two types of application mode avaliable: High/Low pole |
| Image |
| White Balance |
Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction |
2D/3D DNR |
| Flip |
Normal, Flip vertical, Flip horizontal, 180° |
| HLC |
Support |
| BLC |
Support |
| Smart IR |
Support |
| Defog |
Digital defog |
| Heatwave Reduction |
N/A |
| Events |
| Basic Detection |
Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind, Scene change |
| General Function |
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| Audio |
| Audio Compression |
G.711U, G.711A |
| Audio Bitrate |
128 Kbps |
| Two-way Audio |
Support |
| Suppression |
Support |
| Sampling Rate |
16KHZ |
| Storage |
| Edge Storage |
MicroSD, up to 512 GB |
| Network Storage |
ANR, NAS (NFS) |
| Network |
| Protocols |
SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host |
Up to 32 users. 3 user levels: administrator, common user and operator |
| Security |
TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client |
EZStation, UNV-Link, UNV-Link Pro |
| Web Browser |
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Illuminator |
| Illumination Distance (IR) |
40 m (131.2 ft) |
| IR On/Off Control |
Auto/Manual |
| Wavelength |
850 nm |
| Interface |
| Audio I/O |
1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O |
2/1 |
| Built-in Mic |
Support |
| Network |
1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output |
1 BNC (for debugging) |
| Certification |
| EMC |
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety |
CE LVD (EN 62368-1:2014+A11:2017)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection |
IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002) |
| General |
| Power |
DC 12 V (±25%), PoE (IEEE 802.3af) |
| Power Consumption |
Max. 10 W |
| Power Interface |
Ø5.5 mm coaxial power plug |
| Dimensions |
Ø162 mm × 149 mm (Ø6.4″ × 5.9″) (Ø × H) |
| Weight |
1.5 kg (3.31 lb) |
| Working Environment |
-40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment |
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Reset Button |
Support |
| Web Client Language |
22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| Heater |
Support |
| Configurable |
| P/N |
Support |
