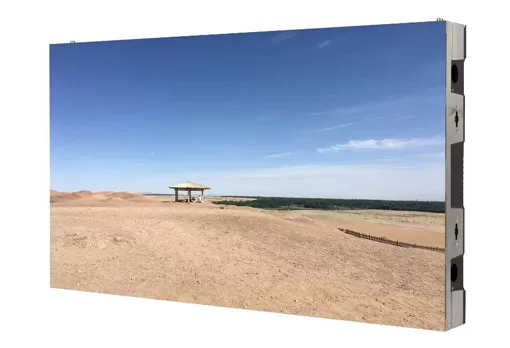

MW7215-E-BL-U

$0.00

Indoor Fine Pixel LED

Call for Quotation

Available on backorder

Categories: ,

Have a question about this product? Ask Our Expert

  • NDAA

    Compliant

  • Protected By Our

    3 years warranty

Description

 Broadcast grey processing gives more image details

 Superior brightness and color uniformity maintains smooth and complete image quality

 Bezel-free native 1080P, 4K and customized resolution LED video wall system

 High brightness provides vivid images in a range of lighting conditions

 Superior contrast ratio

 Ultra high refresh rate

 Wide view of field:160°(H)/ 140°(V)

 Low heating and natural heat dissipation mechanism enables fan-less design, no noise

 Support 7*24 working and lower power consumption

 Long service life

 Maintain from the front of the LED making it ideal for space-constrained installations and eliminating the need for rear access space.

Specifications

Model MW7215-E-BL-U
LED Module
Module type Surface mounted trinity LED
Pixel pitch 1.55
Resolution (W×H) 102×116
Dimensions (W×H) 160 mm×180mm
LED Unit
Dimensions (W×H×D) 640mm×360mm×54.5mm
Modules Component(W×H) 4×2
Resolution(W×H) 408×232
Weight(Kg) 6.95
Screen Area 0.2304 m2
Pixel Density 410833 pitch/ m2
Surface evenness ≤0.1
Material Die-cast Aluminum
Optical
Single Pixel Brightness Correction Support
Single Pixel Color Correction Support
Brightness(nits) 50 to 1500 adjustable
Color Temperature(K) 3000 to 10000 adjustable
Viewing Angle Horizontal 160°, Vertical 140°
Center distance deviation of LED ≤2.5%
Brightness uniformity ≥97%
Color uniformity ≤ ± 0.003 Cx, Cy
Contrast ≥4000:1
Processing Performance
Grey Level 14 bit
Driving Mode Constant current driving, 1/29 scan
Frame Frequency 50/60 Hz
Refresh Rate 1980 Hz
Electrical
Power Supply 100 to 240 V AC
Max Consumption 590 W/ m2
Average consumption 210 W/ m2
General
Maintenance Mode Front Maintenance
Ingress protection IP5X
Operation Temperature -10°C ~ 40 °C
Operating Humidity 8%~85% (No Condensation)
Storage Temperature -10°C ~ 55°C
Storage Humidity 10%~90% (No Condensation)
Working Hours ≥100,000
