EZWall

$0.00

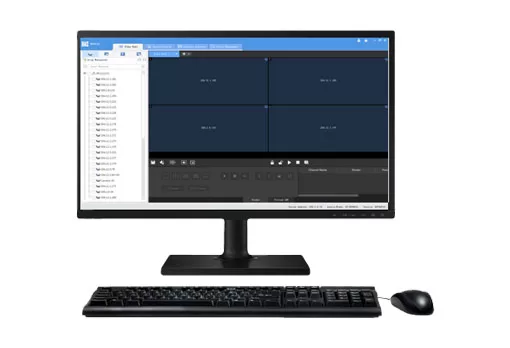

Video Wall Client Software

Have a question about this product? Ask Our Expert

  • NDAA

    Compliant

  • Protected By Our

    3 years warranty

Description

* Supports multiple device models including ADU8606, ADU8609, ADU8612, ADU8615, ADU8618, ADU8612-E, DC-B204, DC-B206, and DC-B209.

* Supports Uniview and other manufacturers’ IPC and NVR.

* Live view, sequence display, and play signal source on video wall, open windows by one click, split window, window roaming, virtual LED, scenes and scene plans.

* Supports small pixel pitch LED, turn on/off Uniview screens automatically at a set time, turn on/off manually or with a delay.

Specifications

Function Description
Note: Functions available may vary with the server.
Device management Add, edit, and delete devices on LAN
Supports automatic search, and allows user to add devices manually
Open device’s Web interface from the client
View device status, including status of NVR-connected IPCs
Supports Onvif
Video wall Add, edit, and delete video walls; supports small pixel pitch LED
Bind decoding channels automatically, bind decoding channels by one-click, splice screens, custom screen layout
Scene and scene plan (execute by set time interval or 24-hour schedule)
Multiple ways to open windows: one click (1/3/4/5/6/7/8/9/10/13/16/17/25/32/36/64 and M*N custom layout), right mouse button, or coordinates
Window roaming and overlay, double-click window to view in full screen mode, renumber windows, window lock/unlock, display on top/bottom, and view window/split window info
Start videos in batches on one or multiple screens
Sequence display videos in one or multiple windows
Play PC’s video signals through server’s DVI or VGA interface to the video wall.
Device group, including default group and custom group
Virtual LED: LED coordinates, custom LED content, font style, font size, font color, character spacing and alignment, background color and transparency, moving speed and mode; enable/disable virtual LEDs
Supports audio output and volume adjustment
Sequence resource Add, edit, and delete sequence resource
Screen control Turn on/off screen automatically at a set time
Turn on/off screen manually
Turn on/off screen with delay
Client configuration Automatic login to EZWall
Automatic login to Windows
Automatically display selected window on top
Play video with set or adaptive stream type
Help User manual
Language Chinese and English
Environment
OS and min. requirements OS: 32-bit or 64-bit Microsoft Windows 7, 8, 10
CPU: Intel Core i5 2.3GHz or higher
RAM: 4GB or higher
