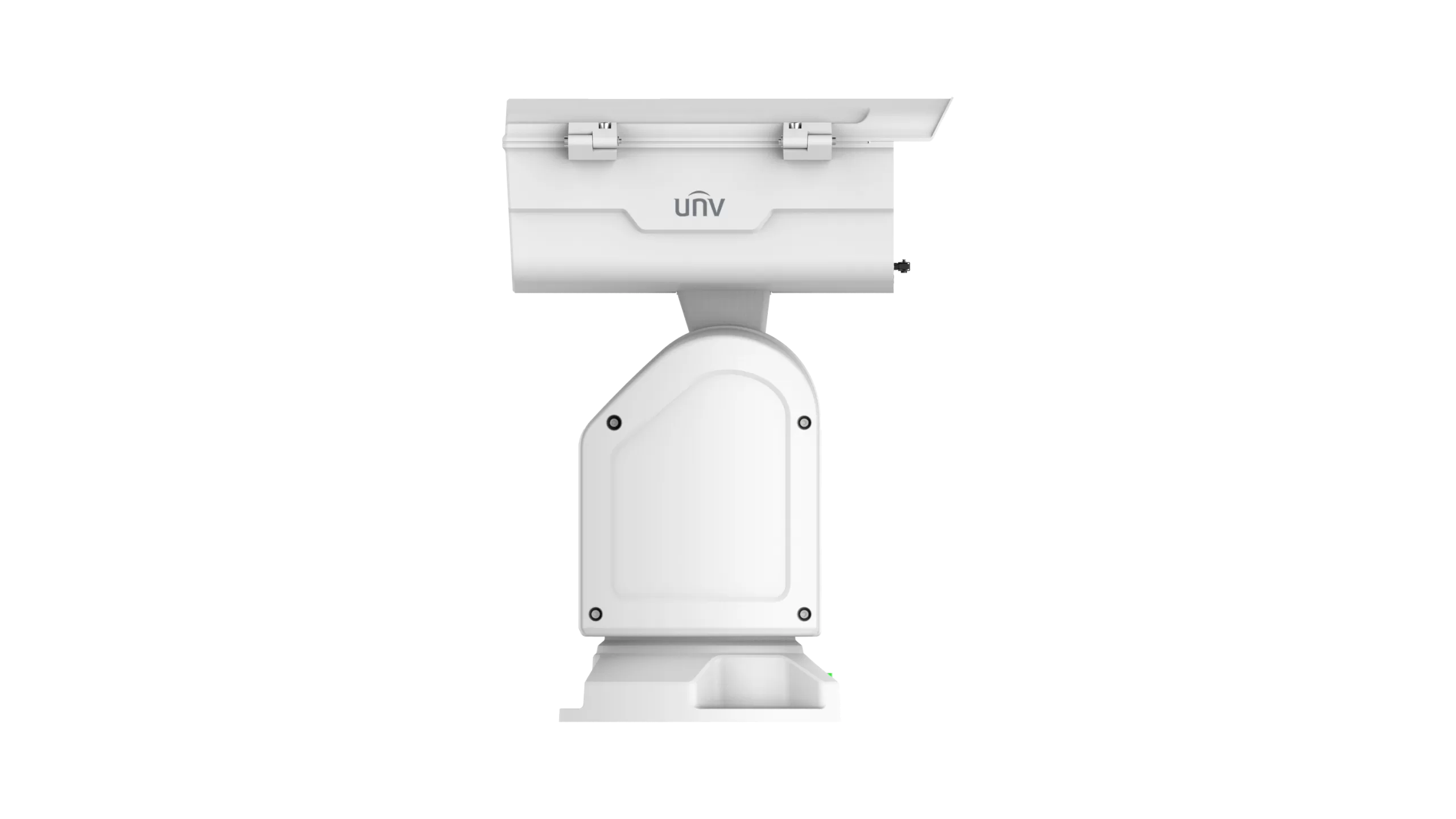

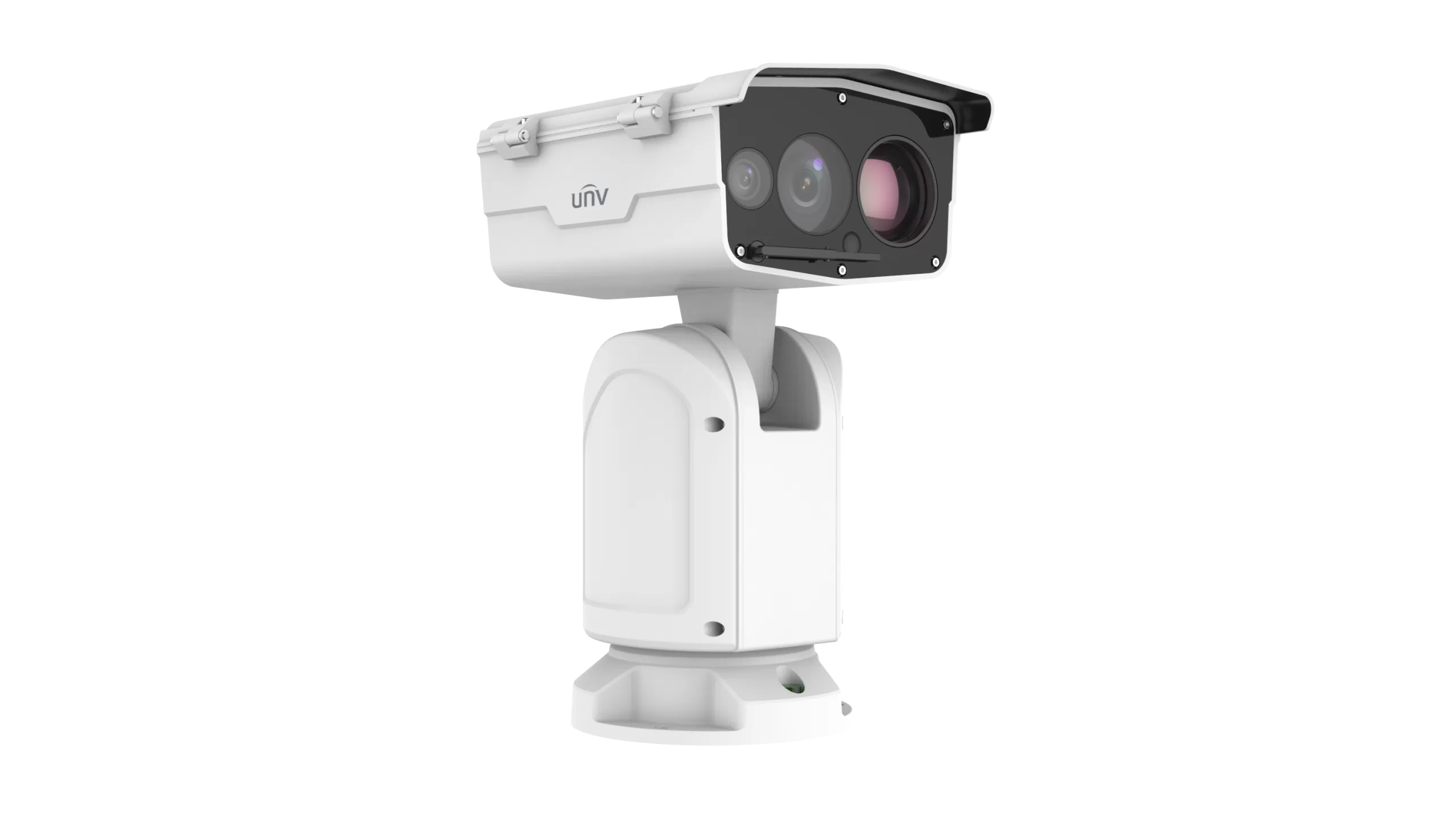

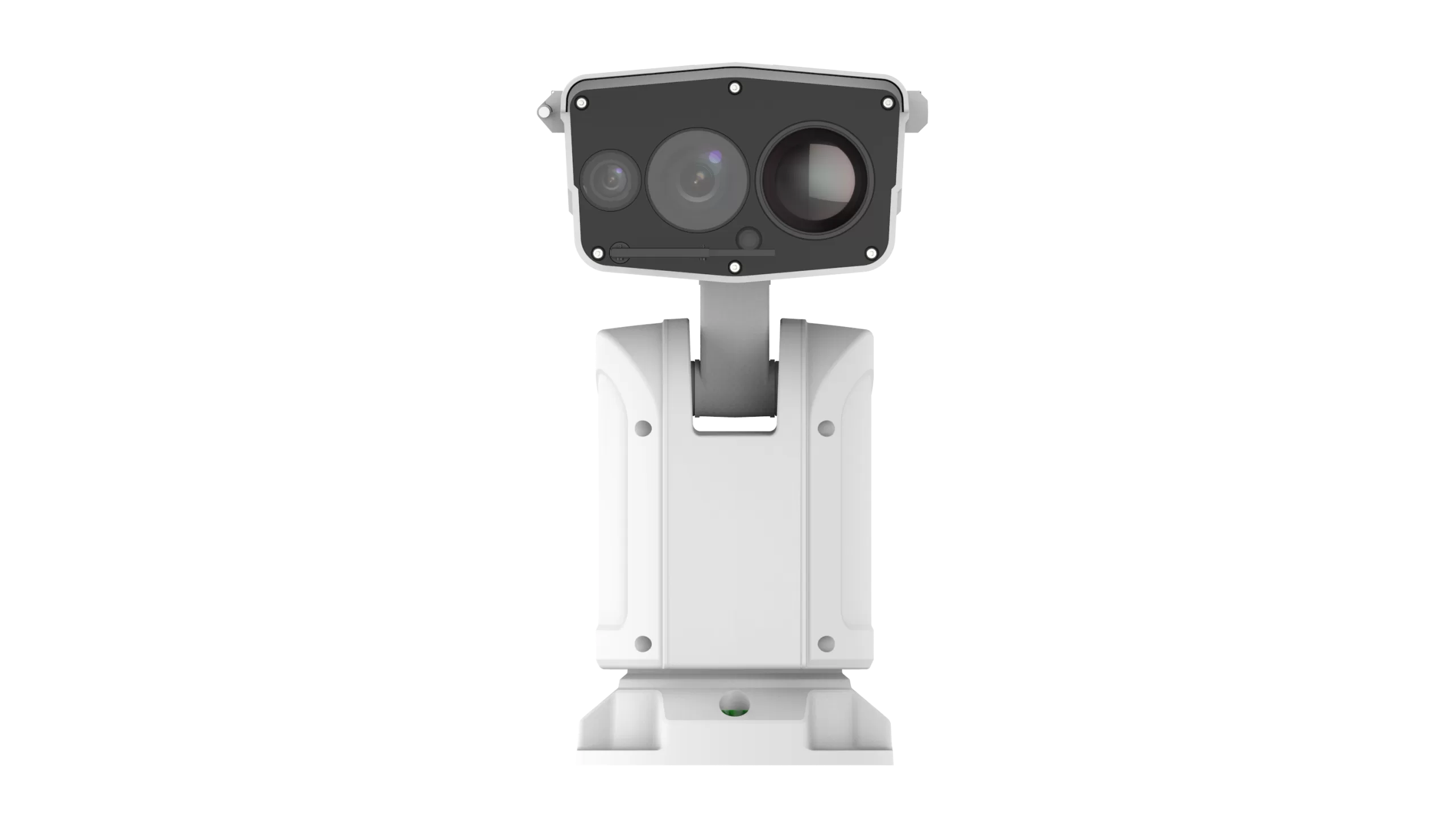

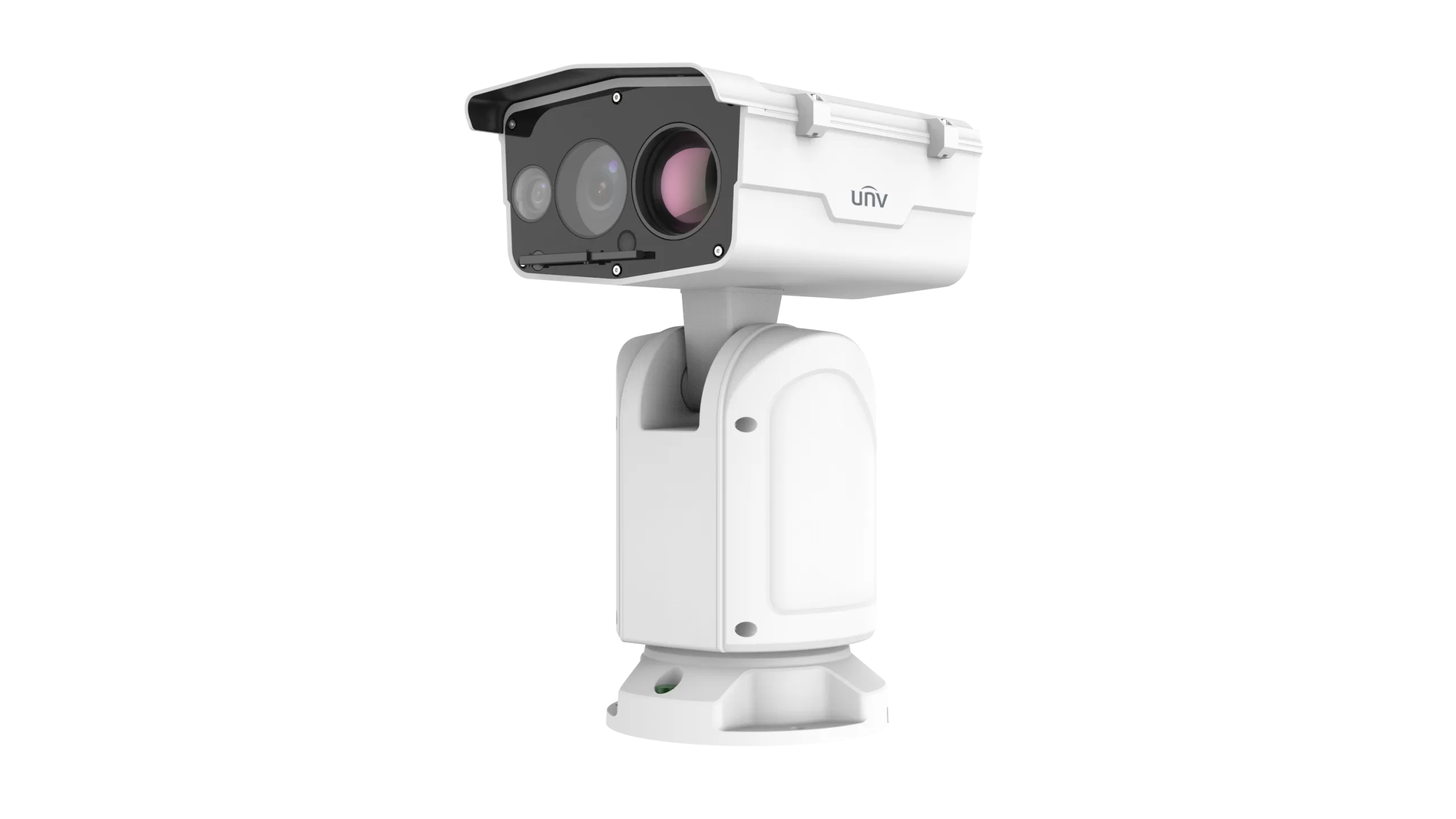

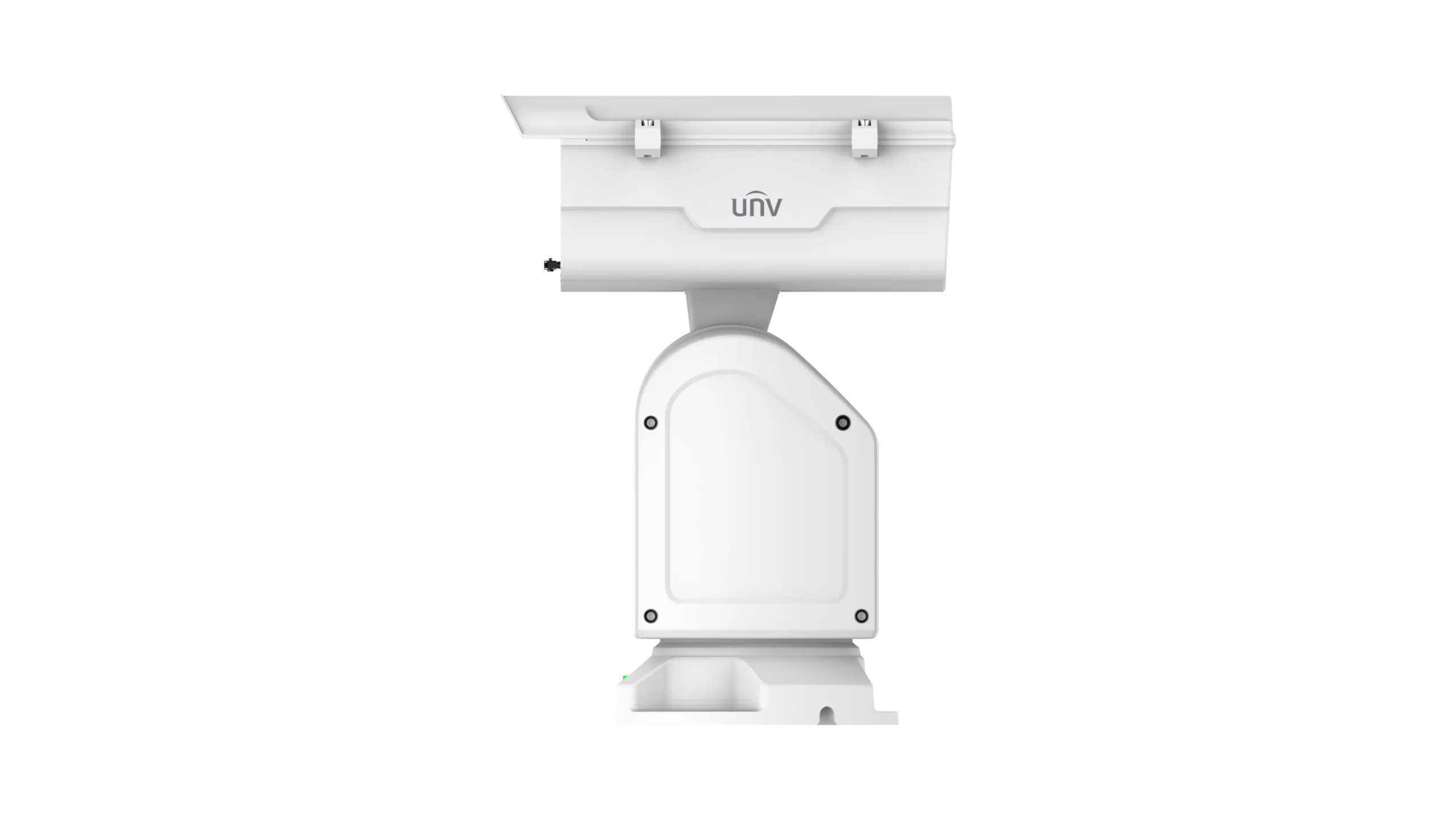

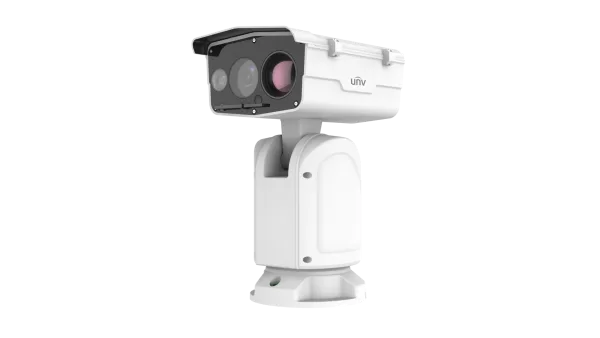

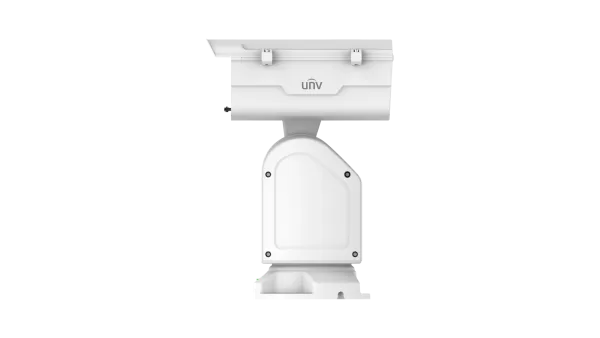

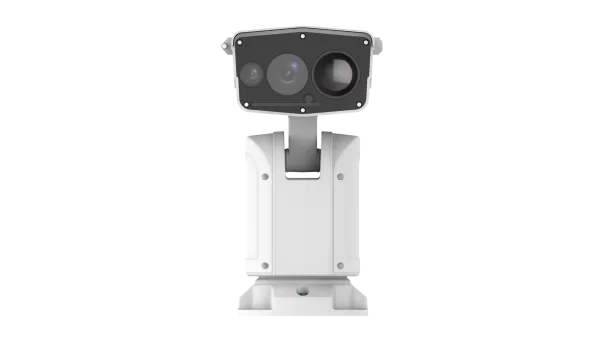

TIC7626EL-GAF75-4X56-VH1 |
| Channel |
| Camera |
| Sensor |
1/1.8″ CMOS |
Vanadium oxide uncooled focal plane arrays |
| Min. Illumination |
Colour : 0.0003lux(F1.2, AGC ON)
B/W : 0.0001lux(F1.2, AGC ON)
0 Lux with Laser |
N/A |
| Pixel Size |
N/A |
12 um |
| NETD |
≤ 40 mk@F1.0@25 ℃ |
≤ 40 mk@F1.0@25 ℃ |
| Shutter |
Auto/Manual, 1 to 1/100000 s |
Auto/Manual, 1 to 1/100000 s |
| WDR |
120 dB |
120 dB |
| S/N |
>52 dB |
>52 dB |
| Lens |
| Focal Length |
6 ~ 336 mm |
75mm |
| Optical Zoom |
56X |
N/A |
| Iris |
F1.2 to F4.6 |
F1.0 |
| Field of View (H) |
57.9°~ 1.6° |
6.1° |
| Field of View (V) |
34.6°~ 0.9° |
4.8° |
| Field of View (D) |
71.2°~ 1.9° |
7.2° |
| DORI |
| DORI Distance (Detect) |
155.5m(510.1ft)~4829.4m(15844.5ft) |
N/A |
| DORI Distance (Observe) |
62.2m(204.0ft)~1931.8m(6337.8ft) |
N/A |
| DORI Distance (Recognize) |
31.1m(102.0ft)~965.9m(3168.9ft) |
N/A |
| DORI Distance (Identify) |
15.5m(51.0ft)~482.9m(1584.4ft) |
N/A |
| Illuminator |
| Illumination Distance (IR) |
Up to 800m(2624.7ft) |
N/A |
| Video |
| Video Resolution |
Main Stream: 4MP (2688×1520): Max.60fps;
Sub Stream: 2MP (1920×1080): Max.60fps;
Third Stream: D1(720 x 576): Max.60fps; |
1080P(1920*1080), Max.30fps |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate |
128 Kbps to 16 Mbps |
128 Kbps to 16 Mbps |
| U-code |
Support |
Support |
| ROI |
Support |
Support |
| Video Stream |
Triple streams |
Triple streams |
| OSD |
Up to 8 OSDs |
Up to 8 OSDs |
| Privacy Mask |
24 areas, up to 8 areas per scene |
N/A |
| Image |
| White Balance |
Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
N/A |
| Digital Noise Reduction |
2D/3D DNR |
2D/3D DNR |
| Flip |
Normal, Flip vertical, Flip horizontal, 180° |
Normal, Flip vertical, Flip horizontal, 180° |
| Defog |
Digital defog, Optical defog |
N/A |
| Low Illumination Characteristics |
ColorHunter with wise-ISP |
ColorHunter with wise-ISP |
| Intelligent |
| Smart Intrusion Prevention |
Cross line detection, intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human and vehicle) |
| Smoke Detection |
Support |
N/A |
| Auto Tracking |
Support tracking targets automatically, capturing detailed information at a distance |
Support tracking targets automatically, capturing detailed information at a distance |
| Events |
| Fire Detection |
N/A |
Support |
| Basic Detection |
Motion detection, Tampering alarm, Audio detection |
N/A |
| General Function |
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| Audio |
| Audio Compression |
G.711U, G.711A |
G.711U, G.711A |
| Audio Bitrate |
128 Kbps |
128 Kbps |
| Two-way Audio |
Support |
Support |
| Sampling Rate |
16KHZ |
16KHZ |
| Storage |
| Edge Storage |
Micro SD, up to 512 GB |
Micro SD, up to 512 GB |
| Network Storage |
ANR, NAS (NFS) |
ANR, NAS (NFS) |
| PTZ |
| Pan Range |
360° (endless) |
360° (endless) |
| Pan Speed |
0.02°/s ~ 140°/s |
0.02°/s ~ 140°/s |
| Tilt Range |
-90° ~ 45° |
-90° ~ 45° |
| Tilt Speed |
0.02° ~ 50°/s |
0.02° ~ 50°/s |
| Number of Presets |
1024 |
1024 |
| Preset Image Freeze |
Support |
Support |
| Home Position |
Support |
Support |
| Number of Presets (IPC) |
1024 |
1024 |
| 3D Location |
Support |
Support |
| Number of Patrol |
16 |
16 |
| Interface |
| Audio I/O |
1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O |
7/2 |
7/2 |
| Serial Port |
1 channel RS485 interface |
1 channel RS485 interface |
| Network |
1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet + 1 × 100 M/1000 M SFP |
1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet + 1 × 100 M/1000 M SFP |
| Video Output |
N/A |
1 BNC (for debugging) |
| General |
| Power |
DC 48V±25%、DC 24V±15%、AC 24V±25% |
DC 48V±25%、DC 24V±15%、AC 24V±25% |
| Power Consumption |
Max 135W |
Max 135W |
| Power Interface |
Wires with cold-pressed terminal |
Wires with cold-pressed terminal |
| Dimensions |
366 x 283 x 509 mm (14.4″ x 11.1″ x 20.0″)(L x W x H) |
366 x 283 x 509 mm (14.4″ x 11.1″ x 20.0″)(L x W x H) |
| Weight |
17.98kg(39.64lb) |
17.98kg(39.64lb) |
| Working Environment |
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment |
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection |
6 KV |
6 KV |
| Reset Button |
Support |
Support |
| RTC |
Support |
Support |
| Certification |
| Protection |
IP66 |
IP66 |
| Live View |
| OSD Font |
Vector |
Vector |
| OSD Character Number |
40 |
40 |
