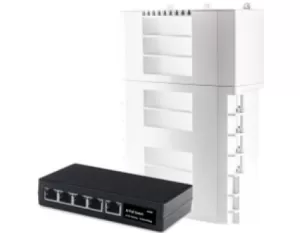

PW2020-4T-IN

$0.00

POE Extend Switch

Category:

Have a question about this product? Ask Our Expert

  • NDAA

    Compliant

  • Protected By Our

    3 years warranty

Description

-Using CAT.5 network patch cords support power for the wireless AP/CPE and IP camera/PTZ
-Networking standard: IEEE802.3af/at/bt
-POE power light blinks to determine the power status of the receiving end, and each blink is 2.7 watts.
-PoE Watchdog AI Function: Detection front-end PoE cameras and PD, Automatic detection, Automatic restart
-6KV lightning protection, 8KV surge protection, anti-reverse connection, over-current protection, over-voltage protection, over-temperature protection, short circuit protection
-The Max output power of the port is 60W, which is convenient for hi-power equipment
-Zero configuration feature power supply is automatically supplied to the adaptive equipment

Specification

Model PW2020-4T-IN

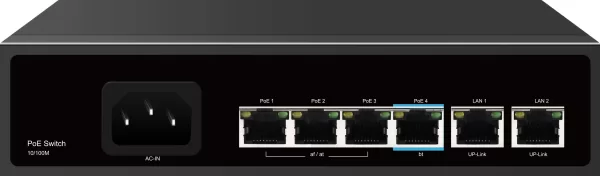

Ports

 4X10/100/100Mbps PoE ports (RJ45)

2X10/100Mbps uplink port (RJ45)
Transmission Rate 200Mbps Full Duplex; 10 or 100 Mbps Half Duplex
Transmission Distance 100Mbps /10Mbps Adaptive 250m MAX




Performance Specification

 Bandwidth: 1.2Gbps
Network Latency (10 to 1000Mbps): ≦16μs (use the 64byte package size)
MAC address table: 2K
The Frame Filter & Transmission Rate: 14800pps the most for 10M port,

148800pps the most for 100M port




Networking Standard

 IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3xFlowControl
IEEE 802.3af/at/bt Power over Ethernet




Power Support

 Power input: AC 110~220V Total≤65W PoE Watchdog: Port 1~4

Power output: PoE1~3Port:1/2(+52V),3/6(GND)≤30W

PoE 4 Port:1245(+53V),3678(GND) compatible1/2(+52V),3/6(GND)≤60W


Protection Level

 Lightning Protection:6KV, Per: IEC61000-4-5

ESD Protection:8KV, Per: IEC61000-4-2
Physical Specifications Size(L*W*H) : 187mm*139mm*43mm




Working Environment

 Operating Temperature: -30℃ ~60℃
Storage Temperature: -40℃ ~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing




Electromagnetic Compatibility

 CE mark
FCCPart15，Class B
VCCI ClassBEN55022 (CISPR 22)
C-Tick
Warranty Whole machine: 1 year
Package Content Installation Manual
