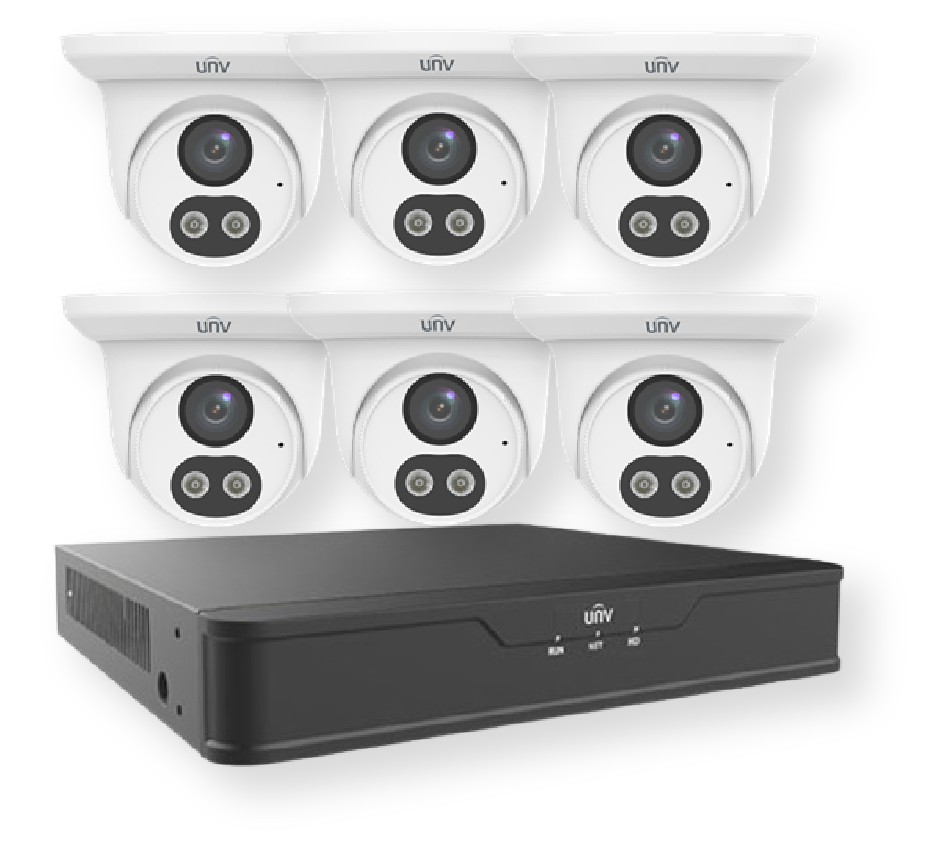

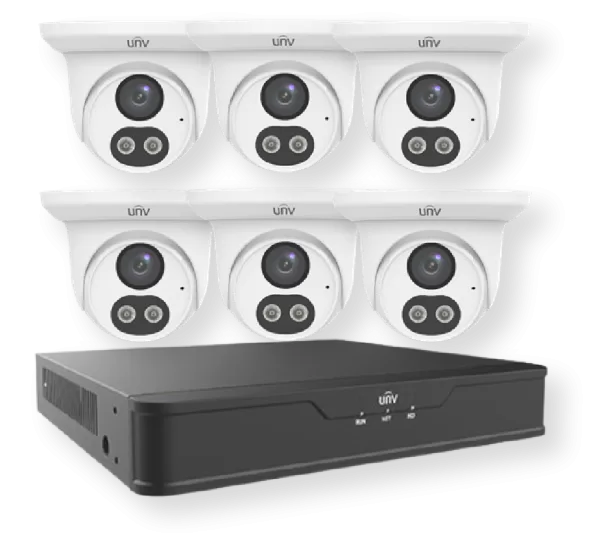

| Model NVR301-08S3-P8 |
Description |
| Video/Audio Input |
IP Video Input 8-ch |
| Network |
Incoming Bandwidth 64Mbps, Outgoing Bandwidth 48Mbps, Remote Users 128 |
| Protocols |
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP |
| Video/Audio Output |
HDMI/VGA Output |
| HDMI |
3840×2160/30Hz,1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| VGA |
1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| Recording Resolution |
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output |
1-ch, RCA |
| Audio Compression |
G.711A, G.711U |
| Synchronous Playback |
8-ch |
| Corridor Mode Screen |
3/4/5/7/9 |
| Decoding |
Ultra 265/H.265/H.264 |
| Liveview/Playback |
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability |
1 x 4k@30, 1 x 5MP@30, 2 x 4MP@30, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30 |
| Hard Disk |
1 x SATA interface, Capacity up to 8TB for each disk |
| VCA Detection by Camera |
Face detection, Intrusion detection, Cross line detection, Audio detection, Enter Area, Leave Area |
| VCA Search |
Face Search, Behavior Search |
| External Interface |
1 RJ-45 10M/100M self-adaptive Ethernet Interface, 2 x USB2.0 |
| PoE Interface |
8 RJ45 10M/100M self-adaptive Ethernet Interface, Max Power 30W for single port, Max 75W in total |
| Power Supply |
52V DC, Power Consumption: ≤9 W (without HDD) |
| Working Environment |
-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions |
260mm ×240mm × 46 mm (10.2″ × 9.4″ ×1.8″) |
| Weight |
≤1.1kg (2.43lb) |
| Model EC-T4F28M-DL Camera |
| Resolution |
4MP |
| Sensor |
1/3.0″ CMOS |
| Min. Illumination |
Color: 0.01 lux (F1.6, AGC ON), 0 lux with IR |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle |
Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360° |
| S/N |
>52dB |
| WDR |
DWDR |
| Lens |
| Lens type |
2.8mm |
| Iris Type |
Fixed |
| Iris |
F1.6 |
| Field of View (H) |
97.0° |
| Field of View (V) |
52.2° |
| Field of View (D) |
107.5° |
| DORI |
| DORI Distance(Lens) |
2.8mm |
| DORI Distance(Detect) |
63.0m(206.7ft) |
| DORI Distance(Observe) |
25.2m(82.7ft) |
| DORI Distance(Recognize) |
12.6m(41.3ft) |
| DORI Distance(Identify) |
6.3m(20.7ft) |
| Illuminator |
| Illumination Distance(IR) |
30m |
| Illumination Distance(Warm Light) |
30m |
| Wavelength |
850nm |
| IR On/Off Control |
Auto/Manual |
| Video |
| Video Compression |
Ultra 265; H.265; H.264; MJPEG |
| H.264 Code Profile |
Baseline profile, Main profile, High profile |
| Dual-Stream |
Yes |
| Audio |
| Audio Compression |
G.711A, G.711U, G.726 |
| Two-Way Audio |
Yes |
| Interface |
| Alarm Input/Output |
1/1 |
| Ethernet |
1 RJ45 10M/100M self-adaptive Ethernet Interface |
| Audio Input/Output |
1/1 (2.0Vpp @ Input, 600Ω) |
| RS485 |
1 (for Pan/Tilt) |
| General |
| Power Supply |
12V DC, ±25%, PoE (IEEE 802.3af) |
| Power Consumption |
Max 12W |
| Working Temperature |
-30°C ~ +60°C (-22°F ~ +140°F) |
| Working Humidity |
Humidity: 95% or less |
| Ingress Protection |
IP67 |
| Impact Protection |
IK10 |
| Weight |
0.87kg |
| Dimension |
130mm × 120mm × 260mm |
