| Model |

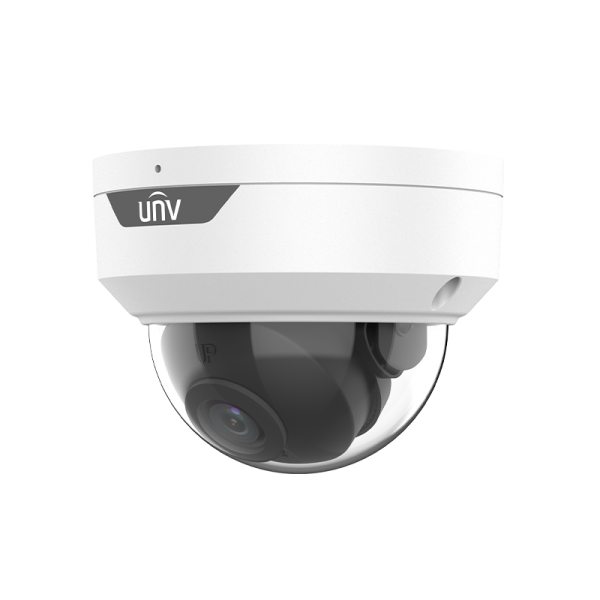

UAC-D125-AF28M |
|
| Sensor |
| Pixel |
5MP |
| Size |
1/2.7″ |
| Minimum illumination |
0.005 lux (F1.6, AGC ON)
0 lux (IR on) |
| Lens |
| Lens |
2.8mm |
4.0mm |
| Lens mount |
M12 |
| Angle of view |
H: 109.1° V: 60.9° D: 126.7° |
H: 91.3° V: 46.1° D: 109.6° |
| Illuminator |
| Illuminator |
One IR illuminator |
| Illumination distance |
30m |
| Lifetime |
≥60,000 hours |
| Video |
| Resolution |
5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V)
4MP: 2560(H)×1440(V)
1080P: 1920(H)×1080(V) |
| Frame rate |
TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
CVBS: PAL, NTSC |
| Shutter time |
PAL: 1/25s-1/50000s
NTSC: 1/30s–1/50000s |
| Image |
| Exposure mode |
Four modes: Global (default), BLC, HLC, DWDR |
| Day/Night |
Three modes: Auto (default), Day, Night |
| Noise reduction |
2D |
| White balance |
Two modes: Auto (default), Manual |
| WDR |
DWDR |
| Smart IR |
Support |
| Flip |
Supports 180° horizontal flip, 180° vertical flip |
| Audio |
| Microphone |
Built-in Mic |
| Camera audio |
TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps |
| Interface |
| Power |
5.5mm power interface |
| Video output |
BNC, supports TVI/AHD/CVI/CVBS |
| Operating environment |
| Temperature |
-30°C to 60°C (-22°F to 140°F) |
| Humidity |
≤95% (RH, non-condensing) |
| Surge protection |
4kV for power and video output interfaces |
| Ingress protection |
IP67 |
| IK rating |
IK10 |
| General |
| Power |
DC 12V(±25%), with reverse polarity protection, Max 3.3W |
| Mount |
Surface mount (default), optional tilted mounting bracket |
| Dimensions |
Φ109mm*83mm (diameter*height) |
| Material |
Metal |
| Weight |
372g (0.82lb) |
| Certification |
CB, CE, FCC, UL |
