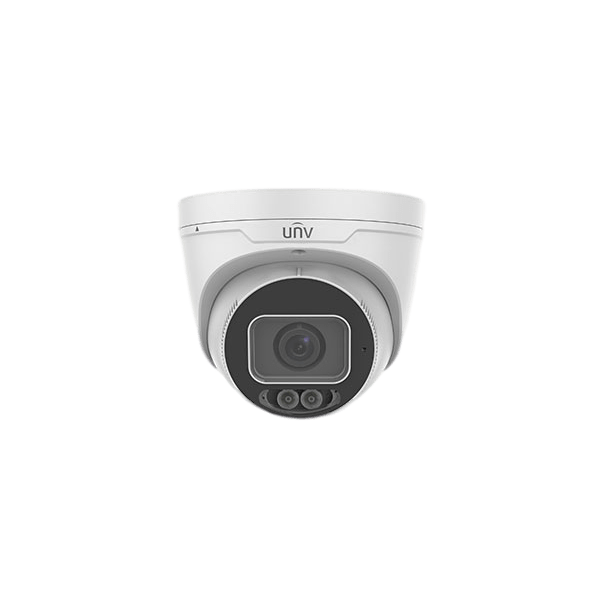

IPC3634SE-ADZK-WL-I0 |
| Camera |
| Sensor |
1/1.8″, 4.0 megapixel, progressive scan, CMOS |
| Minimum Illumination |
Colour: 0.0005 lux (F1.2, AGC ON)
0 lux with IR/LED on |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle |
Pan: 0° ~ 360° |
Tilt: 0° ~ 72° |
Rotate: 0° ~ 360° |
| WDR |
120dB |
| S/N |
>56dB |
| Lens |
| Lens |
2.8 ~ 12mm, AF automatic focusing and motorized zoom lens |
| Iris |
Fixed |
| Field of View (H) |
102.4°~ 49.2° |
| Field of View (V) |
54.7°~ 27.8° |
| Field of View (D) |
106.8°~55.0° |
| DORI |
| DORI Distance |
Lens (mm) |
Detect（m） |
Observe（m） |
Recognize（m） |
Identify（m） |
| 2.8 |
43.4 |
17.4 |
8.7 |
4.3 |
| 12.0 |
186.2 |
74.5 |
37.2 |
18.6 |
| Illuminator |
| LED Distance |
Up to 30m (98ft) |
| Wavelength |
850nm |
| IR On/Off Control |
Auto/Manual |
| Video |
| Video Compression |
Ultra265, H.265, H.264, MJPEG |
| H.264 code profile |
Baseline profile, Main profile, High profile |
| Frame Rate |
Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate |
128 Kbps~16 Mbps |
| U-code |
Support |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
Up to 4 areas |
| ROI |
Up to 8 areas |
| Video Stream |
Triple streams |
| Image |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction |
2D/3D DNR |
| Smart Illumination |
Support |
| Flip |
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| Dewarping |
NA |
| HLC |
Support |
| BLC |
Support |
| Defog |
Digital Defog |
| Intelligent |
| Smart intrusion prevention |
Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
| Statistical Analysis |
People counting, support people flow counting and crowd density monitoring |
| Events |
| Basic Detection |
Motion detection, Ultra motion detection, Tampering alarm, Audio Detection |
| General Function |
Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio |
| Audio Compression |
G.711 |
| Audio Bitrate |
64 Kbps |
| Two-way audio |
Support |
| Suppression |
Support |
| Sampling Rate |
8KHZ |
| Storage |
| Edge Storage |
Micro SD, up to 256 GB |
| Network Storage |
ANR, NAS(NFS) |
| Network |
| Protocols |
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API,SDK |
| User/Host |
Up to 32 users. 2 user levels: administrator and common user |
| Security |
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client |
EZStation
EZView
EZLive |
| Web Browser |
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
| Interface |
| Audio I/O |
Input: impedance 35kΩ; amplitude 2V [p-p] |
| Output: impedance 600Ω; amplitude 2V [p-p] |
| Alarm I/O |
1/1 |
| RS485 |
N/A |
| Built-in Mic |
Support |
| Built-in Speaker |
N/A |
| WIFI |
N/A |
| Network |
1 * RJ45 10M/100M Base-TX Ethernet |
| Video Output |
N/A |
| Certifications |
| EMC |
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety |
CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection |
IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002) |
| General |
| Power |
DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 10.0W |
| Power Interface |
Ø 5.5mm coaxial power plug |
| Dimensions (Ø x H) |
Φ129 x 110mm (Φ5.1” x 4.3”) |
| Weight |
0.66kg (1.45lb) |
| Material |
Metal |
| Operating Conditions |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection |
6KV |
| Reset Button |
Support |
