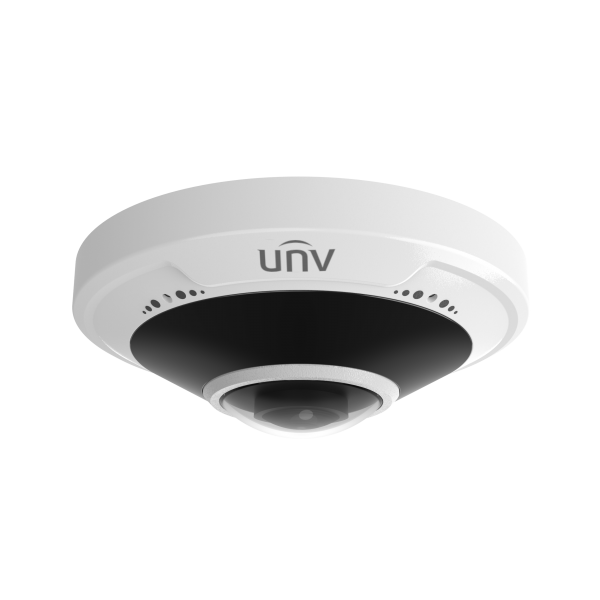

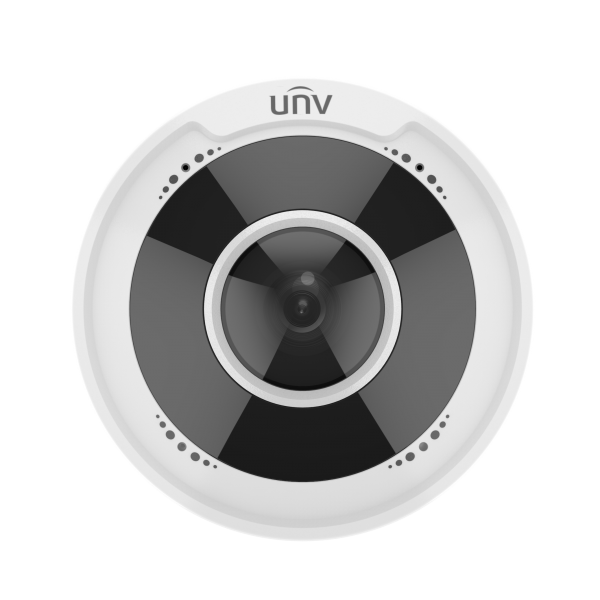

12MP, 360 degree view fisheye, IP66 & IK10, Built in Mic & Speaker

Model No :IPC86CEB-AF18KC-I0

$0.00

Categories: , ,

Have a question about this product? Ask Our Expert

  • NDAA

    Compliant

  • Protected By Our

    3 years warranty

Compatible accessories for this product

AE-TR-JB04-C-IN
Learn more

Description

• High quality image with 12MP,1/1.7’’ CMOS sensor
• Max 4000*3000 resolution
• Ultra265, H.265, H.264, MJPEG
• Ultra wide angle lens, 360° panoramic image
• Embedded infrared light, 360° fill-in light, up to 15m (49ft) IR distance
• Multiple decoding modes, supports software and hardware modes, provides interactive dynamic view
• Heatmap: Working with management platform, the data of moving objects is counted in real time on an intuitive color map
• Built-in microphone & speaker, two-way talk supported
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP67 protection

Additional information

Series

Professional
Megapixel

12MP
Product Type

Fisheye
Lens Length

Fixed
Compliance

IK10, IP67, NDAA

Specifications

IPC86CEB-AF18KC-I0
Camera
Sensor 1/1.7″, 12.0 megapixel, progressive scan, CMOS
Minimum Illumination Colour: 0.03Lux (F2.0, AGC ON)
0Lux with IR
Day / Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, shutter time: 1 ~ 1/100000s
WDR DWDR
S/N >52dB
Lens
Lens type 1.8mm@F2.0
Field of View 360°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
1.8 43.8 17.5 8.8 4.4
Illuminator
IR Range Up to 15m (49ft) IR range
wavelength 850nm
IR On/Off Control Auto/Manual
Video
Compression Ultra265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Main Stream Fisheye View: 12MP(4000*3000)@20fps;3000*3000@20fps; 2560*2560@25fps;
Panorama View: 12MP(4000*3000)@20fps;3000*2000@20/25fps; 3000*1500@20/25fp;
PTZ View: 1920*1080@20/25fps;
Sub Stream Fisheye View:2000*1500@20fps;2000*2000@25fps
Third Stream Fisheye View:D1(720*576)@20/25fps;CIF352*288)@20/25fps;
Video Bit Rate 128 Kbps~16 Mbps
U-code Support
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Video stream Triple streams
Live View Display
Mount Type Support table, wall, and ceiling
Hardware Decoding Ceiling mount: fisheye view, fisheye + 4PTZ, horizontal panorama view、vertical panorama view
Table mount: fisheye view, fisheye + 4PTZ, , horizontal panorama view、vertical panorama view
Wall mount: fisheye view, fisheye + 4PTZ, panorama view
Software Decoding Ceiling mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye+ 3PTZ, fisheye+4PTZ, fisheye+8PTZ,360° panorama + 6PTZ
Table mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye+ 3PTZ, fisheye+4PTZ, fisheye+8PTZ,360° panorama + 6PTZ
Wall mount: fisheye view, 180° panorama view, 180° panorama view+3PTZ, 180° panorama view+4PTZ, 180° panorama view+8PTZ
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Flip Vertical/ Flip Horizontal/180°
Dewarping N/A
HLC N/A
BLC Support
Defog Digital Defog
Intelligent
Smart intrusion prevention Cross Line detection, Intrusion detection
Statistical Analysis Heat map(Working with management platform)
Events
Basic Detection Motion detection, Audio detection, Tampering alarm
General Function Watermark, IP Address Filtering, Tampering Alarm ,Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way audio Support
Suppression Support
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API,SDK
User/Host Up to 32 users. 3 user levels: administrator, common user and operator
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Interface
Audio I/O Input: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O 2/1
Multiple Alarm linkage editable
Built-in Mic Two Mics
Built-in Speaker Support
Serial 1 channel RS485 interface
Network 1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet
Video Output 1 BNC, impedance 75Ω; amplitude 1V [p-p]
Certifications
EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002)
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 12W
Dimensions (Ø x H) Φ149 x 55mm (Φ5.9” x 2.2”)
Weight 524g
Material Metal + Plastic
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH
surge protection 4kv
Reset Button Support
