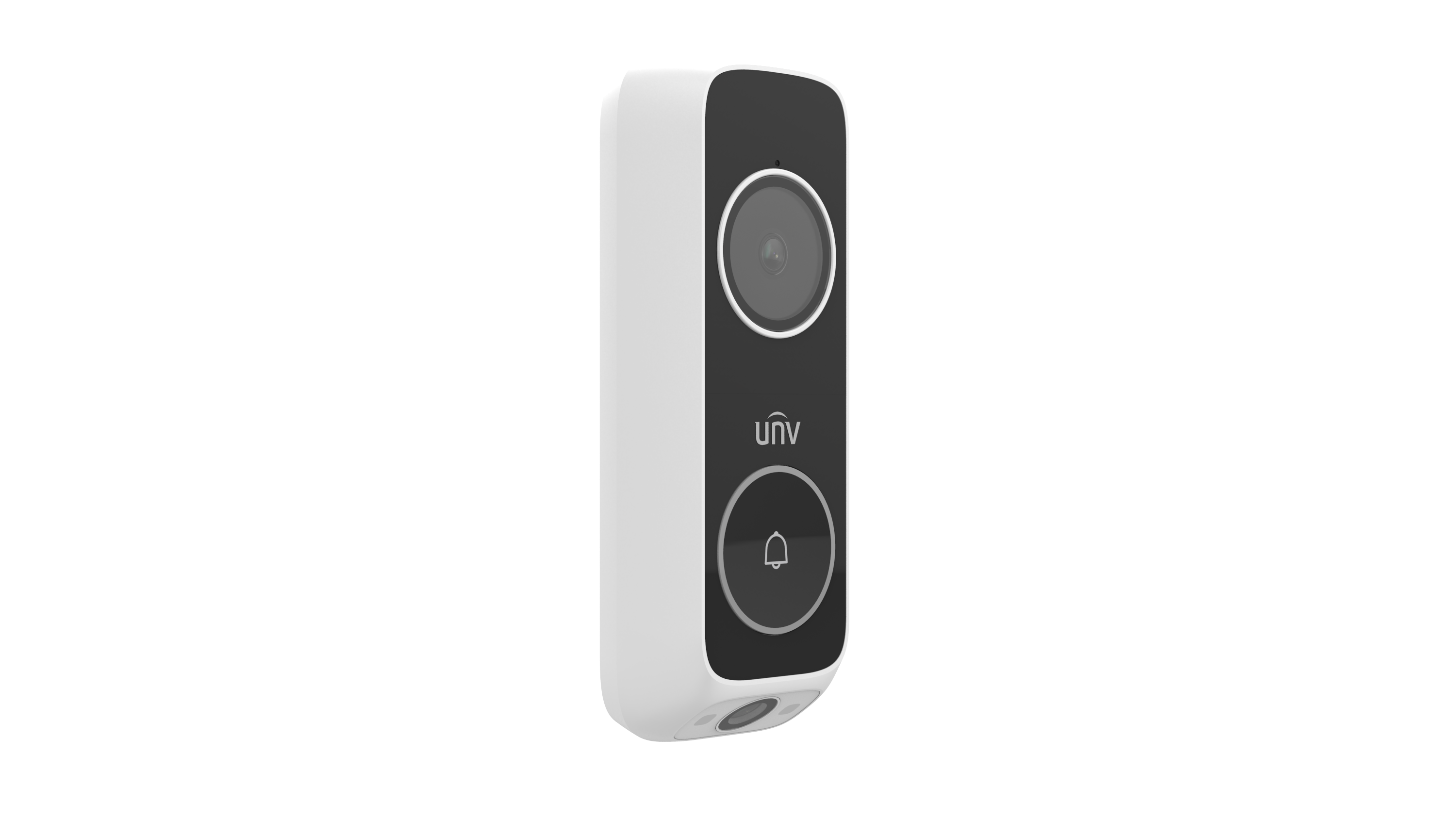

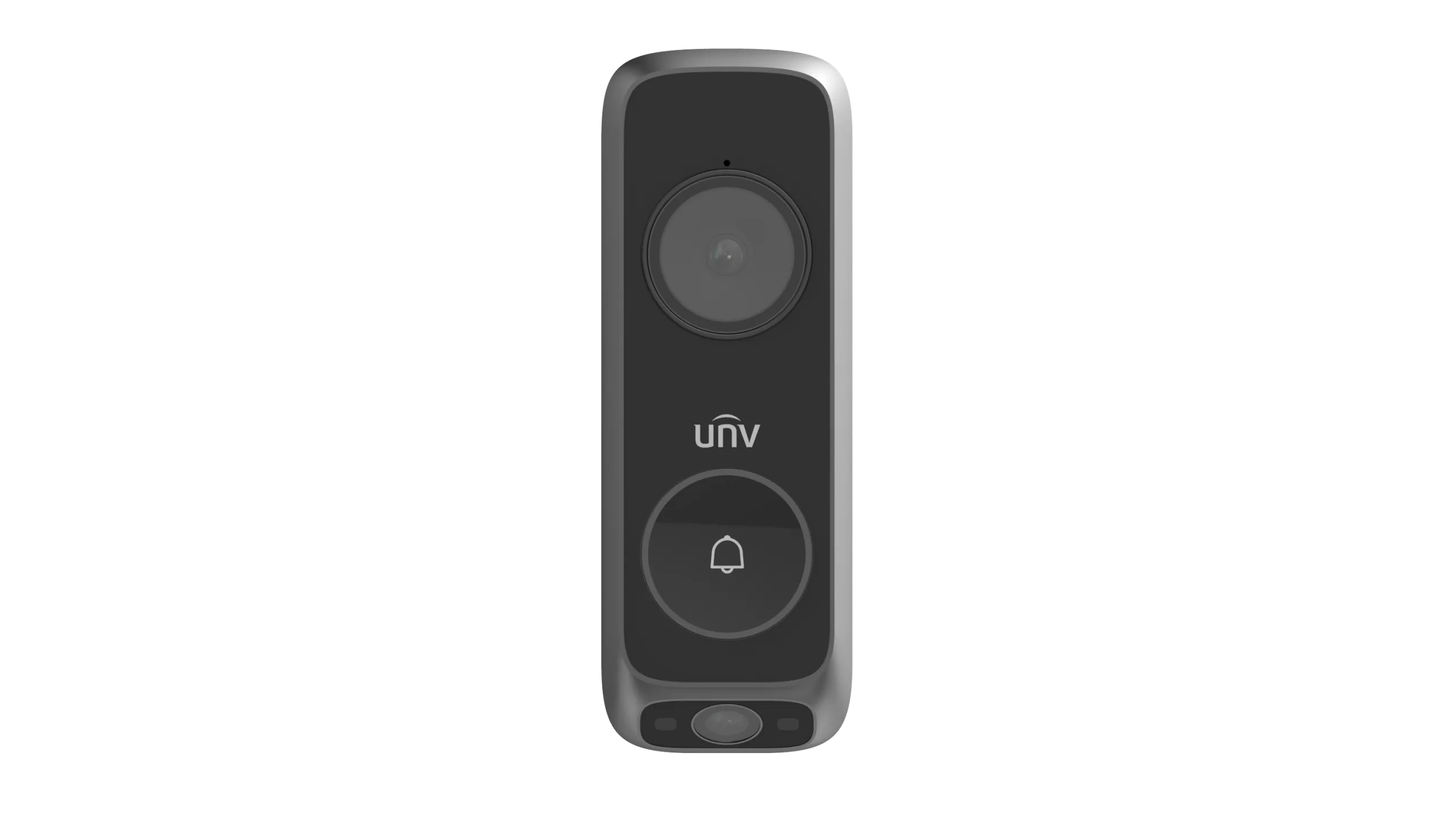

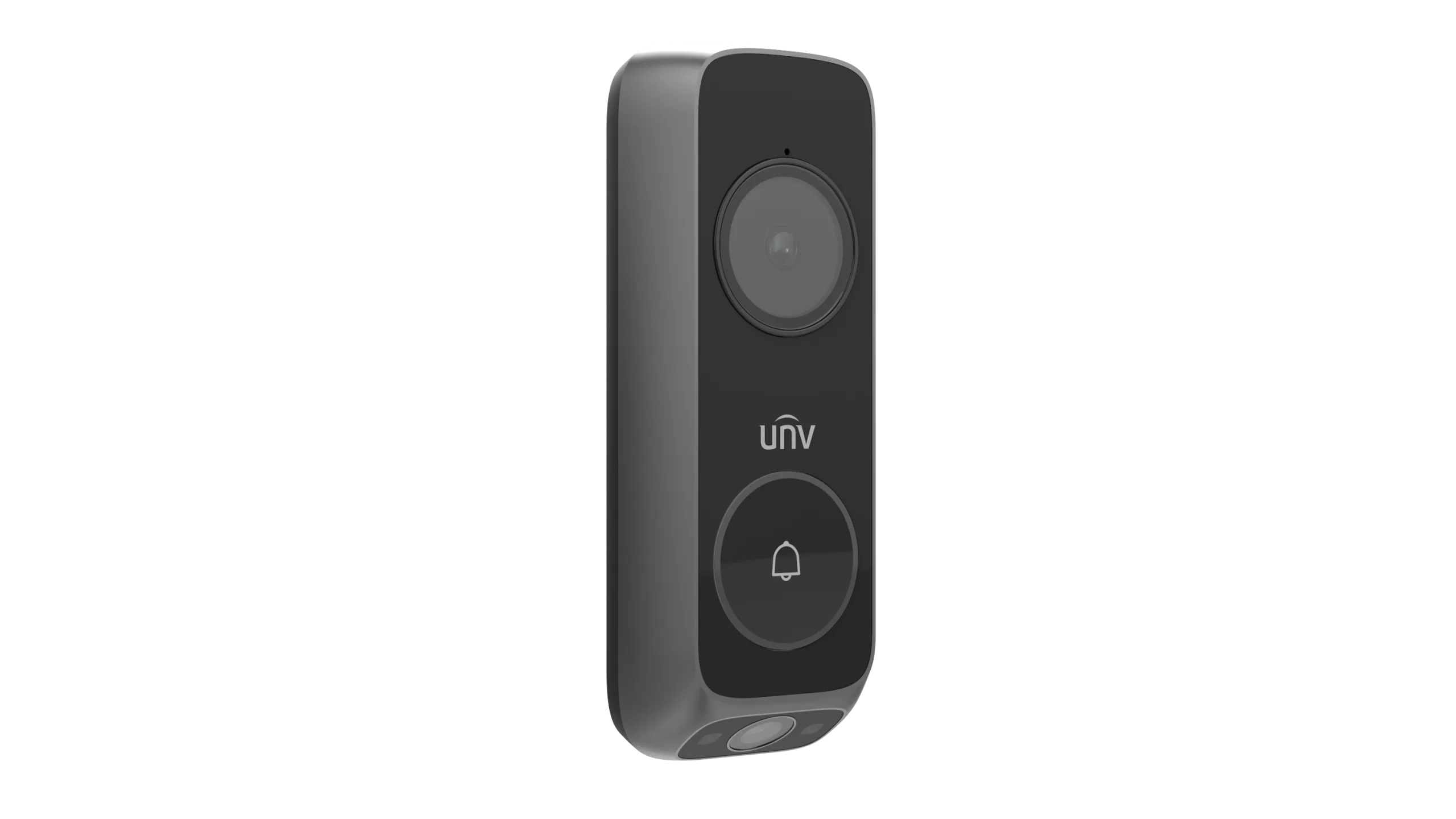

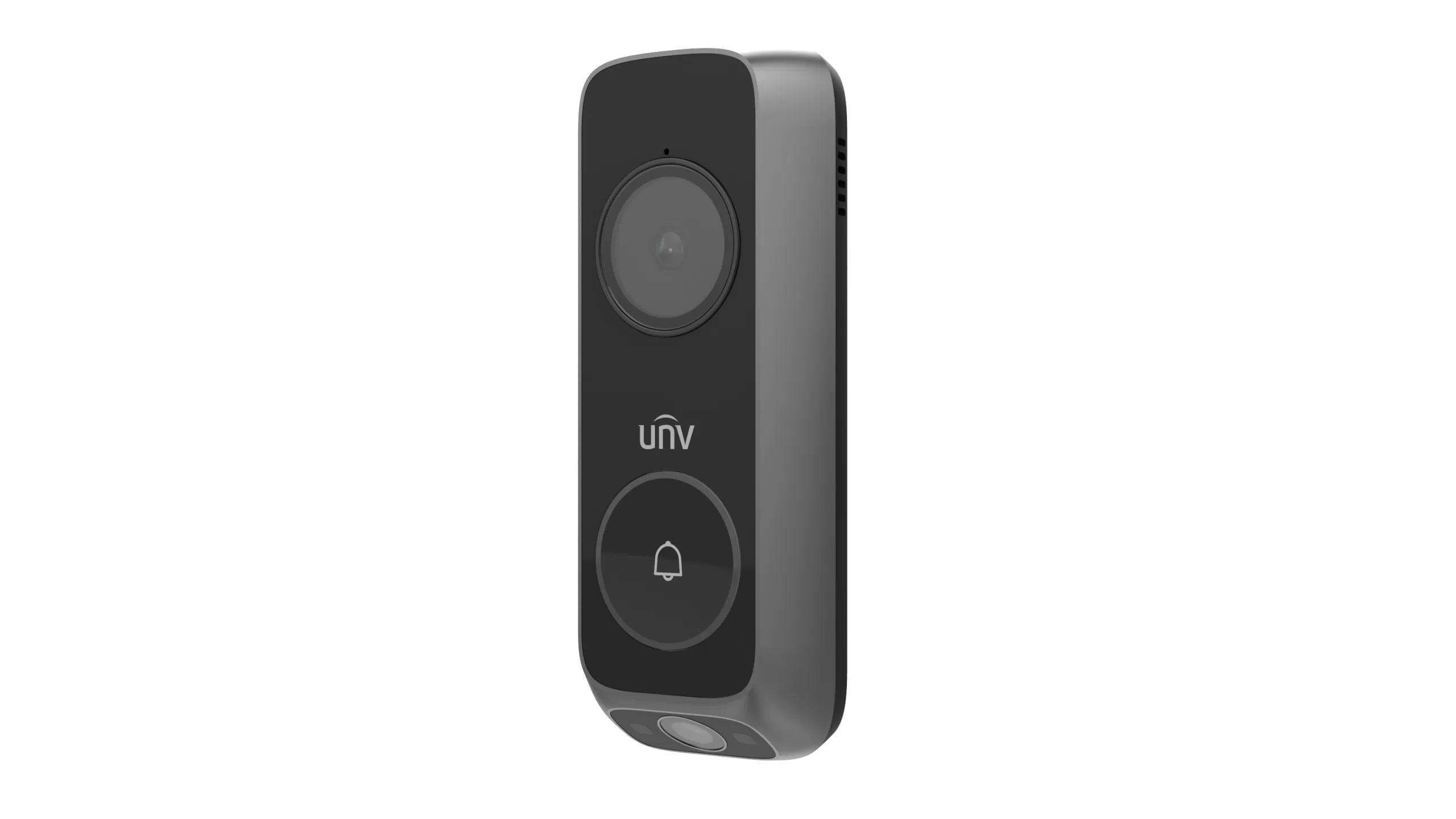

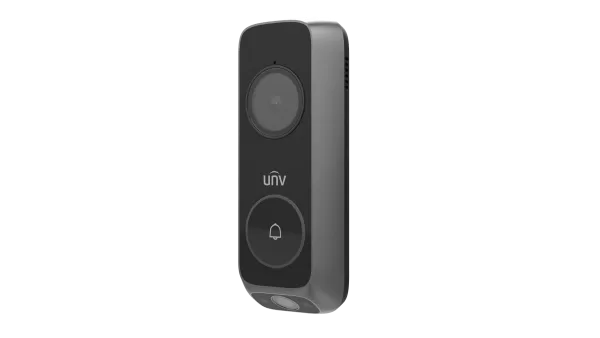

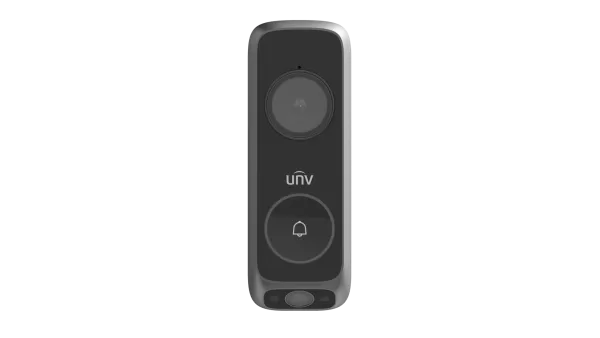

Uniview Dual Camera Video Doorbell

Model No :ED-525B-WB

$0.00

Categories: ,
AI

Have a question about this product? Ask Our Expert

  • NDAA

    Compliant

  • Protected By Our

    3 years warranty

Description

The ED-525B-WB video doorbell is equipped with two high-definition ultra-wide-angle lenses to provide a broad view of your front yard. The device supports motion detection, package detection, and human body detection, meeting your daily home security needs. The doorbell can also call the UNV-Link app, allowing you to answer visitor calls anytime, anywhere.

• Compatible with both mechanical and wireless chimes.

• Can be integrated with Uniview NVR systems for live viewing, video playback, and alarm event searches.

• Capable of sending motion detection, human presence, and package detection alerts to UNV-Link and NVR platforms.

• Features dual cameras (3 MP main and 2 MP secondary): the main lens focuses on visitor identification, while the secondary camera monitors the area near the doorstep for an expanded field of view.

• Utilizes true HDR and WDR technologies to deliver clearer visuals in scenes with strong backlighting.

• Offers integration with the UNV-Link mobile app, enabling users to receive and respond to visitor calls remotely.

• Supports Sub-1GHz wireless chime connectivity.

• Equipped with dual-band Wi-Fi (2.4 GHz and 5 GHz) and Wi-Fi 6 support for smoother streaming and real-time monitoring.

• Bluetooth-enabled for fast and easy network setup.

• Includes built-in 8GB of eMMC storage.

Additional information

Megapixel

3MP, 2MP

Product Type

Doorbell

Lens Length

Fixed

Compliance

NDAA

Features

AI

Specifications

Model ED-525B-WB
Camera
Resolution — main camera 3MP
Resolution — sub camera 2MP
FOV — main camera Horizontal: 116°
Vertical: 82.5°
Diagonal: 131°
FOV — sub camera Horizontal: 96.8°
Vertical: 52.6°
Diagonal: 109.9°

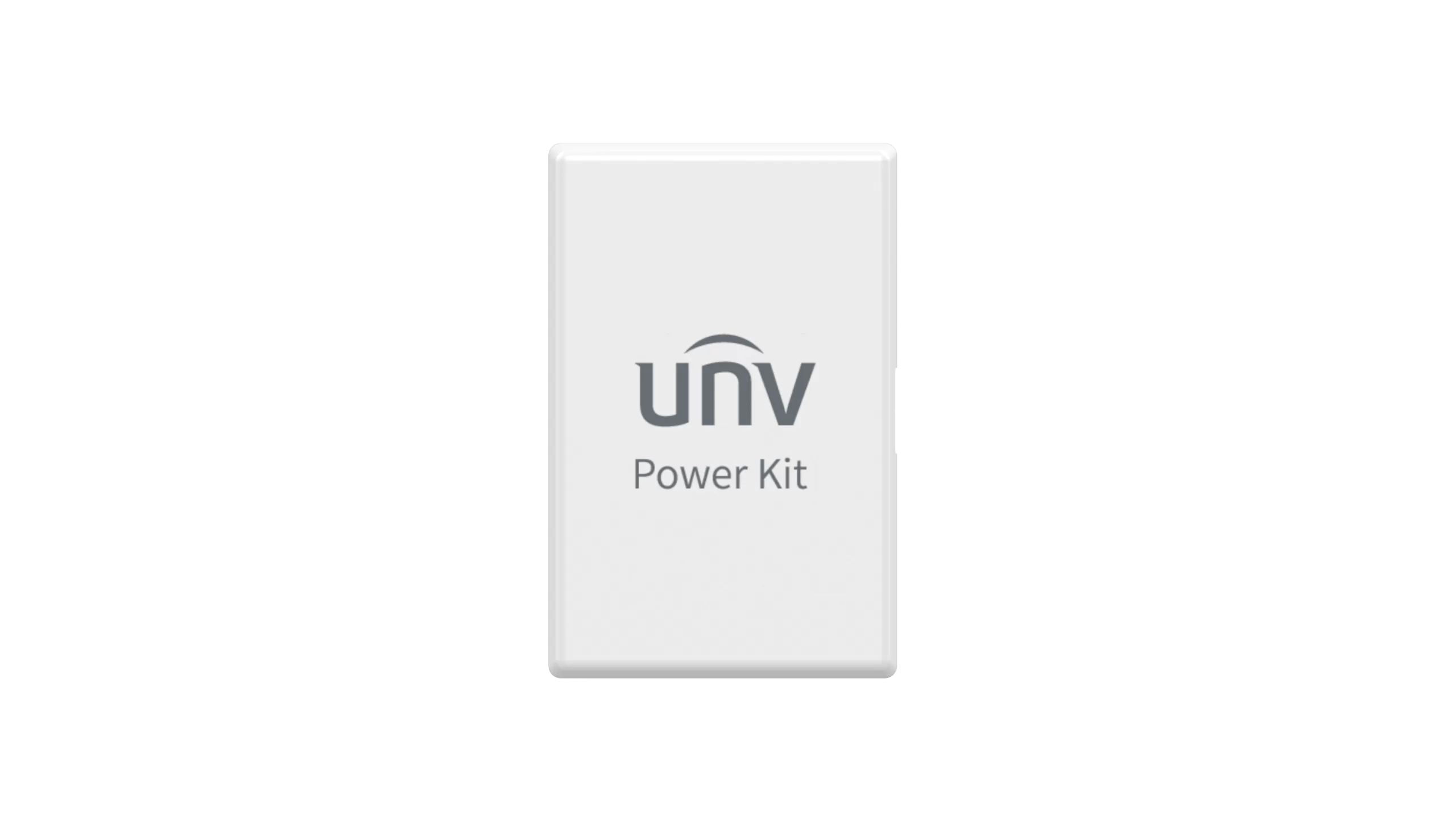

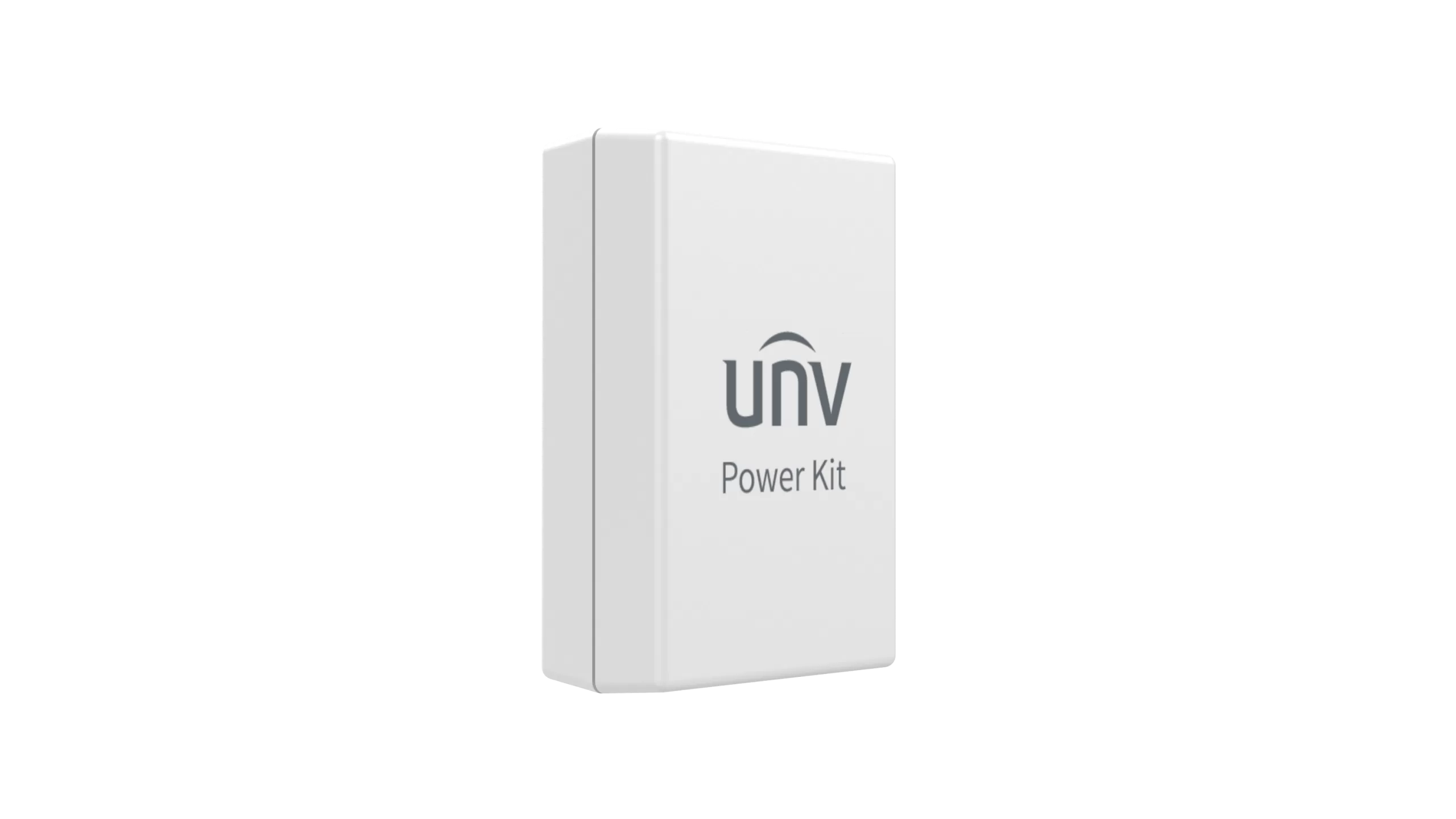

Power kit

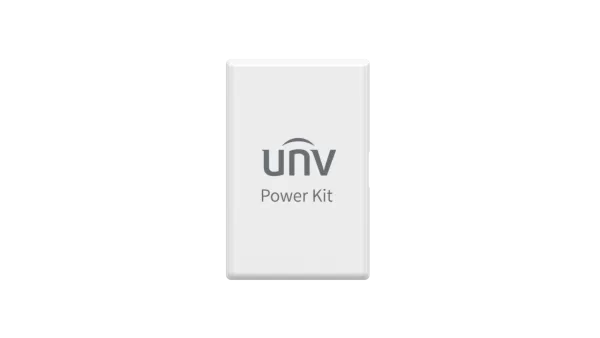

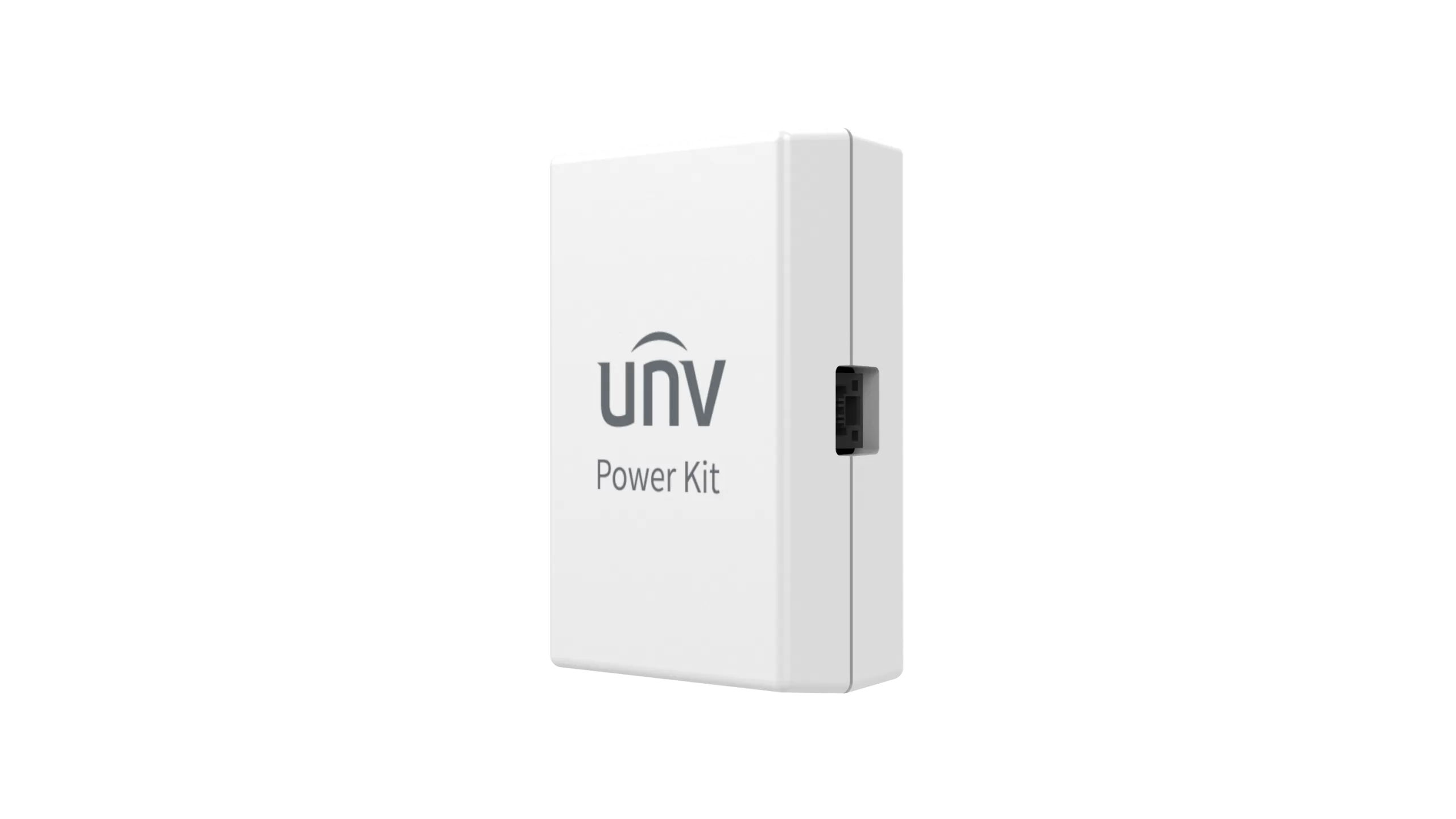

power kit 240 mAH rechargeable lithium battery (for mechanical chime)
Charge temperature 0 °C to 45 °C
Alarm Event
Motion detection alarm Support
UMD alarm Supports human body detection alarm
Package detection alarm Support
Wi-Fi
Operating frequency band 2.4 GHz and 5G Hz
BLE function Compatible, integrated BLE, supports network connection via Bluetooth
Antenna type Built-in omnidirectional antenna
WLAN 802.11 b/g/n/ax
Encryption WPA-PSK/WPA2-PSK/WPA3-personal
Bluetooth Support, integrated in Wi-Fi chip
SUB-1G
SUB-1G Supported, for chime connection
Chimes Max. 3 wireless chimes or 1 mechanical chime
Interface
Reset button 1 micro switch for both pairing and reset
Built-in Mic Support
Built-in speaker Support
Interface protocol UNV private protocol
Network protocol TCP/IP, IPv4, HTTP, RTP, RTSP, NTP
Illuminator
Illumination scheme IR + white light
Illumination distance IR: 5 meters
White light: 2 meters
Min. Illumination 0.02 lux
General
Dimensions 55.8 mm × 156.5 mm × 27.9 mm
Weight Net weight: 142g
Gross weight: 295g
Power consumption 10W
Installation method With bracket installation, the power cable is installed on the bracket, and the doorbell is connected to the bracket through the contacts.
Button One call button
Power source Contact: AC 12 V to 24 V
Operating temperature -30 °C to 60 °C
Ingress protection IP65
WDR
WDR Supports DWDR, main camera 80dB, sub camera 58dB
Video
Video compression H.265, H.264
Audio
Audio bit rate 128 Kbps
Audio sampling rate 8K
Audio compression G711, MP3, PCM
Certification
Certification CB, CE LVD, CE EMC, CE RED, FCC SDOC, FCC ID
